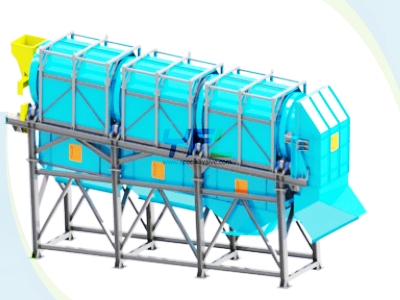

Trommel Screen Separator

    The HC trommel screen separator is widely used for separating materials in different sizes. It classifies materials into different categories and separates it from each other.

    The HC trommel screen separator is widely used in municipal solid waste recycling line.

Inquiry Now
  • Features
  • Specification

  • Combined screen makes the trommel screen separator convenient to replace and change;
  • Simple structure, convenient and stable operation;
  • Suitable for classifying municipal solid waste and other similar materials;
  • High sorting efficiency, total mesh area is more than 10 times larger than other drum screens;
  • Materials are well distributed, the two times material arrangement assure the materials entering into the shredder in waterfall style;
  • No requirements of materials type, moisture rate , and coal slime rate, never adhered;
  • Removes the iron totally to ensure the follow-up shredders work safely
  • Can separate at least two different sizes materials;
  • Conveying in sine wave style, no blocking problem. The conveying speed is faster than feeding speed, thus completely solved the blocking problem that frequently happens in vibrating, bar, banana, string screens;
  • Reduces motor power dramatically to save at least 30% power compared with other rotating screens;
  • Compact structure makes the trommel screen separator easy and convenient for transformation, installation, inspection and repair.

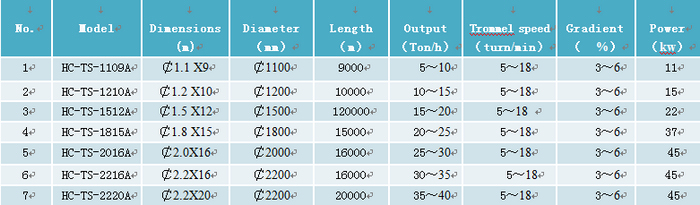

Model and Parameters of Trommel screen separator:

Trommel screen separator model and parameters
