Steam Jacketed Gate, Globe, Check, Ball, Plug Valve

Steam Jacketed Gate, Globe, Check, Ball, Plug Valve
Steam Jacketed plug valve
Steam Jacketed Gate, Globe, Check, Ball, Plug Valve Steam Jacketed Gate, Globe, Check, Ball, Plug Valve Steam Jacketed Gate, Globe, Check, Ball, Plug Valve Steam Jacketed Gate, Globe, Check, Ball, Plug Valve

    The SV jacketed valve is designed to keep the temperature of medium in the valve.

    The SV jacketed valve is widely used in applications which the medium requires stable temperature.

Inquiry Now
  • Features
  • Specification

The jacketed valve has a jacket with hot steam, conduction oil or condensate water to keep the medium temperature stable to avoid problems caused by increasing or decreasing of the medium temperature.

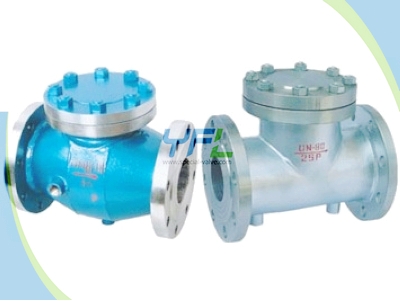

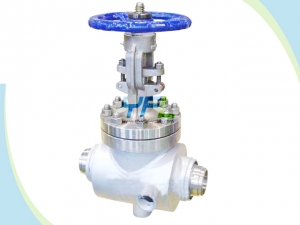

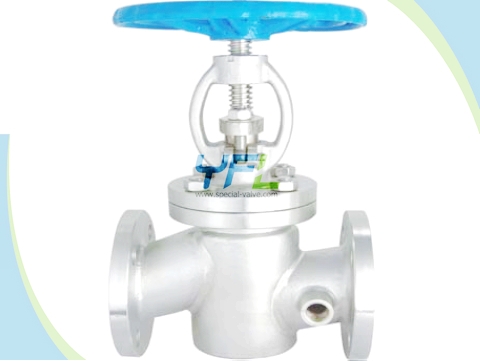

There are jacketed gate valve, jacketed globe valve, jacketed check valve, jacketed ball valve, jacketed plug valve and jacketed control valve etc.

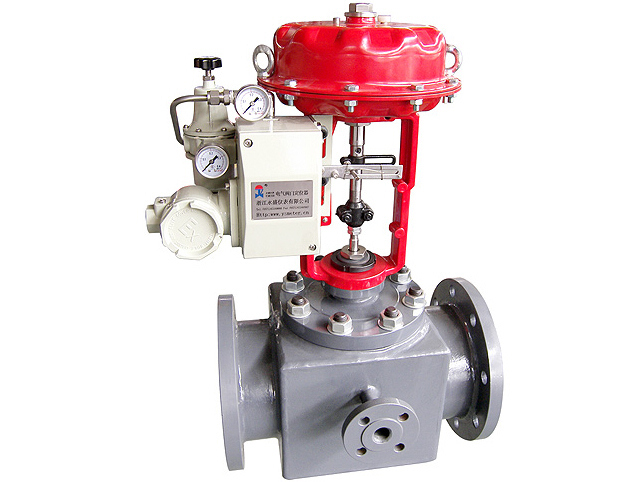

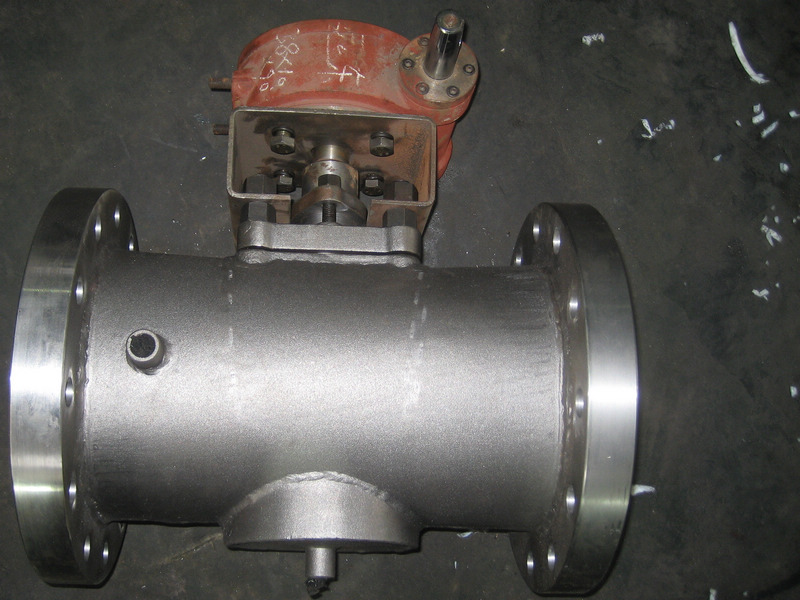

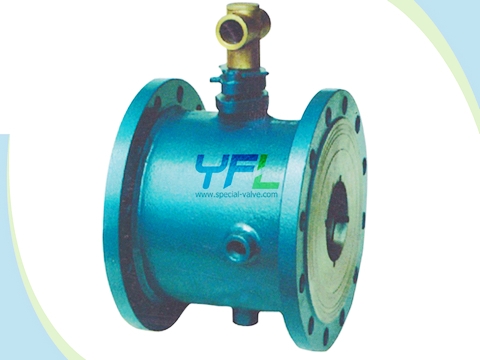

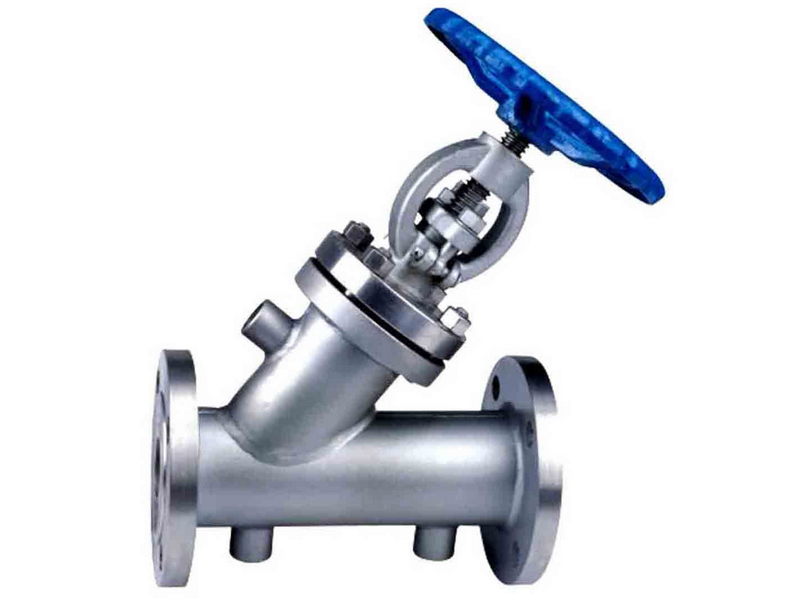

Jacketed plug valve 150LB 6×8”Jacketed control valveSteam jacketed Y type globe valveJacketed ball valves

Product range:

  • Size: DN50～DN1500, 2’’ ～60’’
  • Pressure rating: PN16—PN420, 150lbs—2500lbs
  • End connection: Flanged RF, RTJ, BW
  • Body materials: WCB, LCB, WC6, WC9, CF8, CF8M, 4A, 5A

Technical standards:

  • Design: API 600, BS1873, BS1868, API 6D, API 599
  • Face to Face: ASME B16.10
  • Flanged ends: ANSI B16.5
  • Test & Inspection: API598

Related Tags :

Steam jacketed ball valves Jacketed plug valves Jacketed gate valves Jacketed globe valves Jacketed check valves Jacketed control valves
