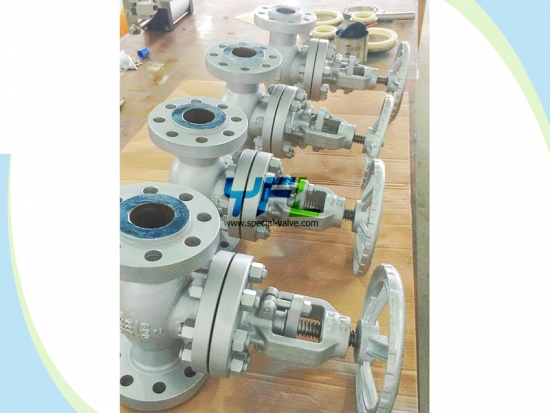

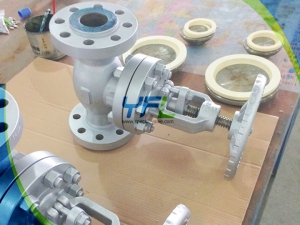

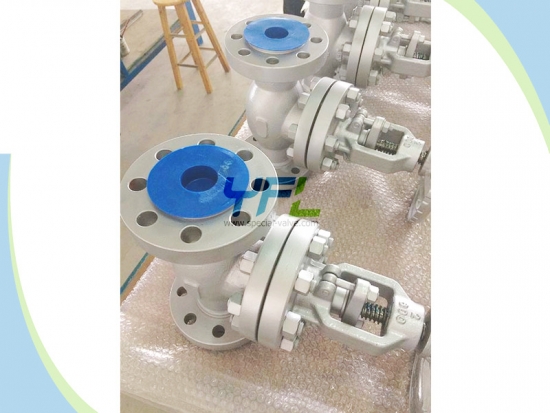

Anti-abrasive Ceramic Globe Valve

Anti-abrasive Ceramic Globe Valve

    Applications:

    Thermal power plant: Lime slurry, fly ash

    Steel work: Ore, coal, coke, carbon powder

    Mining: copper, Zinc, Nickel suspension

    Polysilicon: Silicon powder

    Alumina: Aluminium oxide powder

    Paper & Pulp: Kaoflin, wood particles

    Petrochemical: Catalyst slurry

    FertilizerAmmonium nitrate slurry

    Chemistry: Corrosive and abrasive service

    Pneumatic conveying: Cement, glass, fiber

Inquiry Now
  • Features
  • Specification

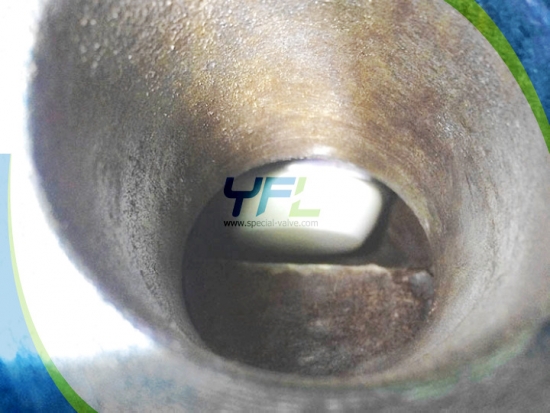

Excellent Anti-abrasion performance

Seat and Disc in material of ceramic with extreme hardness are wear resistant against friction in pneumatic conveying of powder and abrasive slurry with hard solid content in industries of steel, metallurgy, petrochemical, mining, power plant, paper, pulp and polysilicon etc.

Excellent Anti-corrosion performance

The ceramics are inert to almost all organic and inorganic chemicals.

Strong stability in strong corrosive slurry avoids pollution to the service.

Much longer service life

Service life of seat and disc with ceramic is many times of seat and disc with stainless steel.

Product range:

Size: DN15DN200 1/2’’ 8’’

Pressure rating: PN16PN160 150lbs900lbs

End connection: Flanged RF RTJ BW

Body materials: WCB/CF8

Disc materials: ceramic

Seat materials: ceramic

Temperature range:

 -29℃—425 for carbon steel body

-29℃—600 for stainless steel body

Leakage class:

ISO 5208 Class C

Technical standards:

Design: BS1868

Face to Face: ASME B16.10

Flanged ends: ANSI B16.5 EN1092-1

BW ends: ASME B16.25

Test & Inspection: API598
