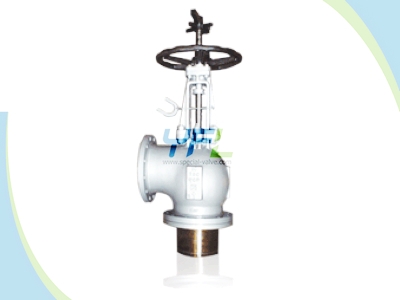

Needle Regulating Angle Type Slurry Valve

The SV Needle regulating angle type slurry valve is widely used in industries of Aluminum oxide, mining and metallurgy etc. which has slurry contained solid particles.

Inquiry Now

Features
Specification

Convenient for operation and maintenance;
Easy to replace the trim;

It is easily to remove the scar when scaling to insure the open and close smoothly.

We also supply Three Way Slurry Valve, welcome to view more!

Product range:

Body material：Carbon steel
Normal size：DN50~ DN 600
Pressure rating：PN10~PN 16 , 150Class
Suitable temperature：≤425℃
Operation type：Handwheel, bevel gear operated
Suitable service：Slurry contained solid particles in industries of Aluminum oxide, mining and metallurgy etc.

Technical standards:

Design standard：GB/T 12235, ASME B16.34
Face to Face：GB/T 12221
Flange dimensions：GB/T 9113, HG/T 20592, HG/T 20615, ASME B16.5
Pressure test：JB/T 9092, API 598
Product Mark：GB/T 12220, MSS SP-25
