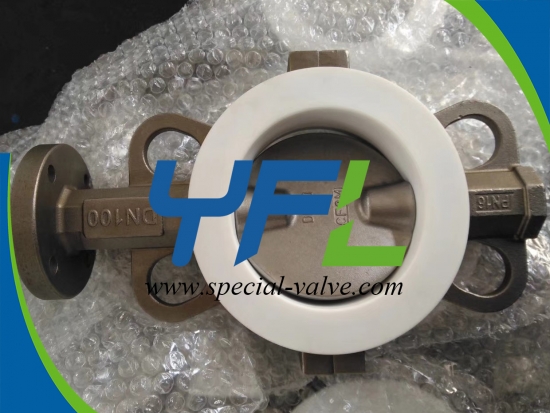

PN16 DN100 PTFE Lined Butterfly valve

PN16 DN100 PTFE Lined Butterfly valve
    The YFL PN16 DN100 PTFE Lind Butterfly Valves with CF8M disc and PTFE seat are designed to be suitable for  strong corrosive medium like hydrochloric acid, Nitric acid, Hydrofluoric acid, liquid chlorine, sulfuric acod and aqua regia  in industries of Oil & Gas, Petrochemical, Mining, Metallurgy, Hydropower station, Pharmaceutical, Paper, Environment protection etc.
Inquiry Now
  • Features
  • Specification

Materials specifications:

Body: GG25, GGG40, WCB, LCB, CF8, CF8M, CF3, CF3M

Shaft: 2Cr13(SS420), SS410, 17-4PH

Shaft sleeve: Silicone rubber

O-ring: Viton, Viton+FEP, Viton+PFA

Disc: CF8/CF8M, CF3/CF3M

Seat: PTFE, RPTFE

Elastic backing: Silicone rubber, Viton



Standards and Range:

Design & Manufacture Standard: API 609

Flange Standard: ASME B16.5, JIS B2220, EN 1092-1

Face to Face: ASME B16.10

Inspection & Test Standard: API 598

Nominal diameter: 2''-64''

Nominal pressure: 1.0 MPA, 1.6 MPA, 150LB
