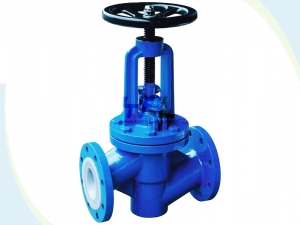

Fluorine Lined Gate, Globe, Check, Ball, Plug Valve

    The YFL lined fluorine valve has fluorine plastic material lined in the valve body to be suitable for corrosive service in industries of oil, chemical, pharmaceutical and fertilizer etc.

Inquiry Now
  • Features
  • Specification

The YFL lined fluorine valve has 10 to 20 time longer working life than that of stainless steel valve for corrosive service.

The fluorine plastic materials include PTFE (F4), FEP (F46), PCTEF (F3), PVDF (F2), RPP and PO etc.

There are lined fluorine butterfly valve, lined fluorine ball valve, lined fluorine diaphragm valve, lined fluorine sleeved plug valve, lined fluorine gate valve, lined fluorine globe valve and lined fluorine check valve etc.

Lined F46 angle type globe valveLined F46 lift type check valveLined PTFE ball valveLined F46 plug valve

Product range:

  • Size: DN50DN1500 2’’ 60’’
  • Pressure rating: PN16PN420 150lbs2500lbs
  • End connection: Flanged RF RTJ BW
  • Body materials: WCB LCB WC6 WC9 CF8 CF8M 4A 5A
  • Lined materials: PTFE F46 F3 F2 PO

Technical standards:

  • Design: API 600 BS1873 BS1868 API 6D API 599
  • Face to Face: ASME B16.10
  • Flanged ends: ANSI B16.5
  • Test & Inspection: API598
