PFA Lined Sight Glass

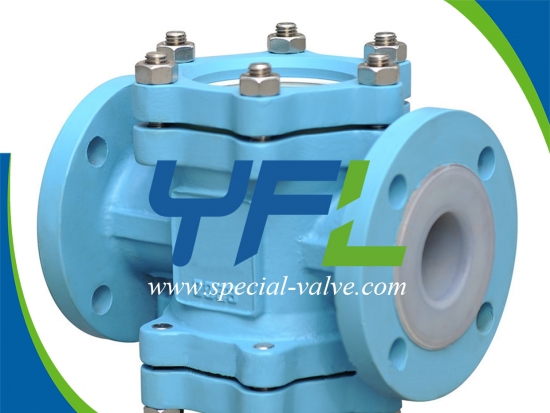

    The YFL PFA Lined Sight Glass has body lined with FEP to be suitable for corrosive service in petrochemical, Oil & Gas, mining & metallurgy, paper & pulp, chemical, wastewater treatment, food & pharmaceutical etc.
Inquiry Now
  • Features
  • Specification

Materials Specifications:

Body: WCB/CF8/CF8M/CF3/CF3M+ PFA/FEP/PO Lining

Standards and ranges:

Flange dimensions: ASME B16.5, EN1092-1

Inspection and test: API598, Spark test

Norminal size: 1/2''—20'', DN15-DN500

Normial pressure: PN6—PN16, 150lbs

Suitable temperature:

PFA:-29℃—200℃,PTFE:-29℃—180℃, FEP:-29℃—150℃, GXPO:-29℃—80℃

Suitable service:

Strong corrosive medium like hydrochloric acid, Nitric acid, Hydrofluoric acid, liquid chlorine, sulfuirc and aqua regia etc.
