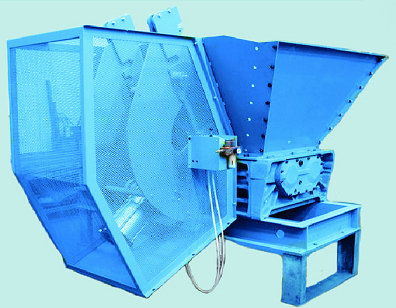

The rotating screen can be installed on the double shaft secondary shredder to control the output size. The rotating trommel screen around the shredder body makes the shredded oversize particle back into the shredder hopper to be shredded again.
hydraulic drive replaces the motor drive to increase the torque for bulky waste
and control the speed to achieve high torque, low speed and low noise. The
hydraulic drive also ensure the stability of shredding and avoid mechanical
damage of shredder.
When shredding large hollow waste, the shredder can be equipped with hydraulic ram to push the materials to the cutters for shredding to increase the shredding efficiency.
strengthened design and split two-piece structure achieve convenient
maintenance. The dust-proof clapboard prevents the liquid or debris from damaging
the bearing seat so that service life of the bearing seat can be prolonged.

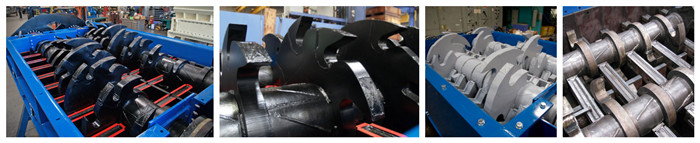

Double Shaft Cutters:
Various cutters configurations to suit different

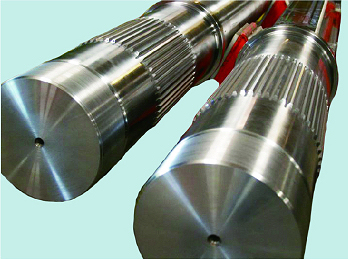

The reducer and the cutters are connected with the main shaft through Germany standard spline with large transmission torque. The parts in the main shaft are not relative sliding. The total contact area with many teeth is able to bear heavy load with high positioning accuracy and even contacting pressure.
PLC Control System:
Start, rotate reversely and stop automatically and remote
Motor protection when jamming, overloading, overheating and short
Electronic components are from international famous brand of Siemens,
ABB, and Schneider;
Frequency is adjustable to adjust the rotating speed of blades
according to the real production capacity to save energy.
