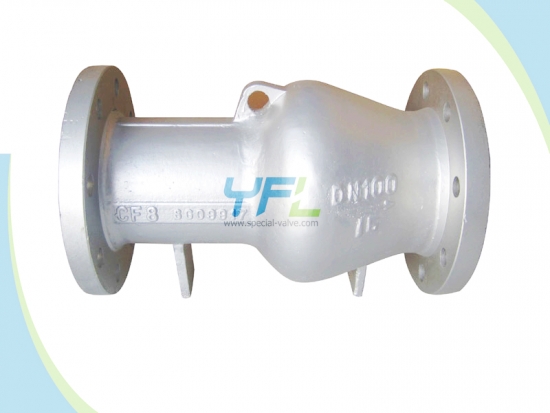

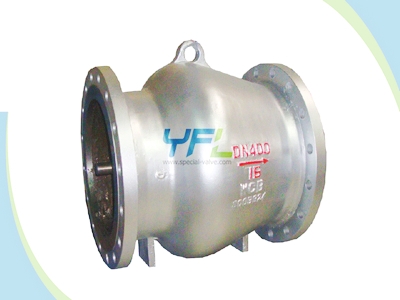

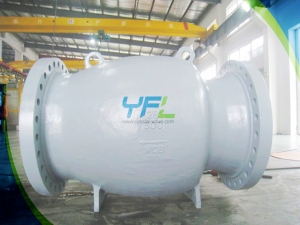

API 6D Large Size CF8 Non Noise Axial Flow Check Valve

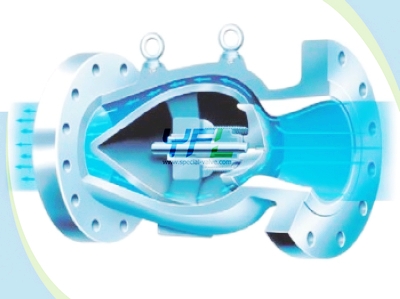

The SV API 6D axial flow non noise check valve is opened or closed by the valve clack moving through the valve body axial under the spring effect. With the unique venture streamlined flow path design, the medium can flow through the path rapidly and steadily without noise. The SV axial flow check valve is widely used at the outlet of petroleum pump and the outlet of natural gas compressor.

Inquiry Now

Features
Specification

The SV axial flow check valve has one piece body compact design;
The SV axial flow check valve has venture streamlined flow path design;
Low flow resistance, good flow pattern, rapidly response to pressure change;
Valve opened and closed smoothly, reliable operation, long service life;
Excellent seal performance, zero leakage;
Opening and sealing at low pressure.

Product range:

Size: DN 15～DN1500, 1/2’’ ～60’’
Pressure rating: PN16～PN420, 150lbs～2500lbs
End connection: Flanged RF, BW
Body materials: WCB, WCC, LCB, LCC, WC1, WC6, WC9, C5, C12, C12A, CF8, CF3, CF8M, CF8C, CF3M, 4A, 5A etc.

Technical standards:

Design: API 6D, ASME B16.34
Face to Face: ASME B16.10, DIN3202
Flanged ends: ASME B16.5, ASME B16.47, EN 1092
BW ends: ASME B16.25, ASME B31.8, EN12627
Test and inspection: API 598, DIN3230, EN12266
