API 600 Pressure Seal Bonnet Cast Steel C12A Gate Valve

API 600 Pressure Seal Bonnet Cast Steel C12A Gate Valve
Inquiry Now
  • Features
  • Specification

  • The YFL pressure seal gate valve is full bore design;
  • PSB: Pressure seal bonnet;
  • OS&Y: Outside screw and yoke;
  • The YFL API 600 cast steel gate valve has flexible wedge and is fully guided;
  • Renewable seat ring;
  • Forged T-head stem;
  • Rising stem and non-rising handwheel;
  • Live load packing;
  • Smaller operate torque than globe valve;
  • Bypass available.

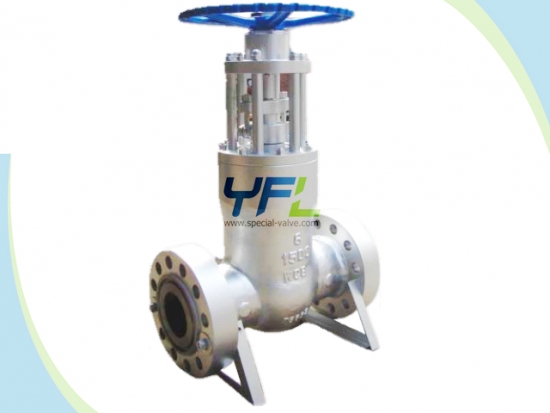

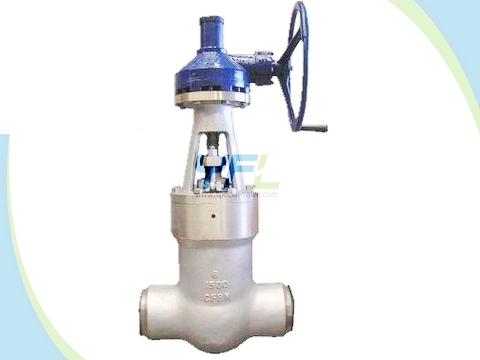

1500#RF 10'' Pressure seal bonnet Gate Valves2500#BW 12'' Pressure Seal Bonnet C12A GATE VALVE

Product range:

  • Size: DN50DN1200 2’’ 48’’
  • Pressure rating: PN160PN420 900lbs2500lbs
  • End connection: Flanged RF BW
  • Body materials: WCB WCC LCB LCC WC1 WC6 WC9 C5 C12 C12A CF8 CF3 CF8M CF8C CF3M 4A 5A etc.
  • Operation: handwheel gear electric pneumatic

Technical standards:

  • Design: API 600 DIN3352 BS1414 BS EN1984
  • Face to Face: ASME B16.10 DIN3202 F4/F5
  • Flanged ends: ASME B16.5 ASME B16.47 EN 1092
  • BW ends: ASME B16.25 ASME B31.8 EN12627
  • Test and inspection: API 598 DIN3230 EN12266
