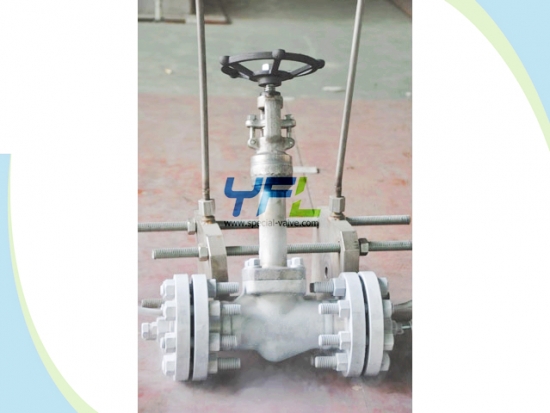

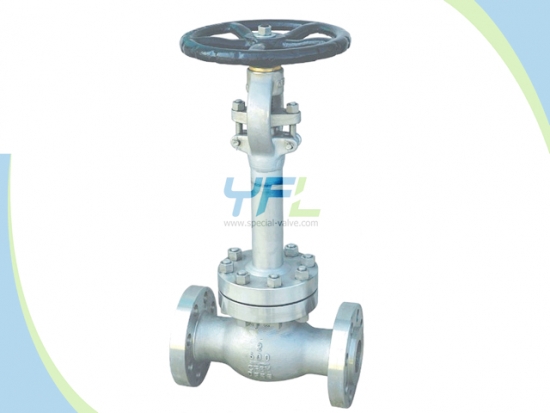

• The YFL cryogenic globe valve has extended stem design;
• Full bore and reduced bore available;
• Bolted bonnet, welded bonnet, pressure seal bonnet available;
• Rising stem and non-rising stem available;
• The YFL low temperature globe valve has straight pattern body, Y type body and angle type body design;
• Single disc and double disc available;
• Flat and cone sealing face available;
• Rising stem and non rising stem available.

Product range:

• Size: DN8～DN600 1/4’’ ～24’’
• Pressure rating: PN16～PN420 150lbs～2500lbs
• End connection: Flanged RF BW SW Threaded
• Body materials: LCB LCC LC3 CF8 CF8M CF8C CF3 CF3M LF2 LF3 F304 F304L F316 F316L F321 F904L etc.
• Operation: handwheel gear electric pneumatic

Technical standards:

• Design: API 600 BS1873 DIN3356
• Face to Face: ASME B16.10 DIN3202 F1/F2/F32
• Flanged ends: ASME B16.5 ASME B16.47 EN 1092
• BW ends: ASME B16.25 ASME B31.8 EN12627
• Test and inspection: API 598 DIN3230 EN12266
