JIS B2002/BS 2080 Flanged GG25 Y Type Strainer

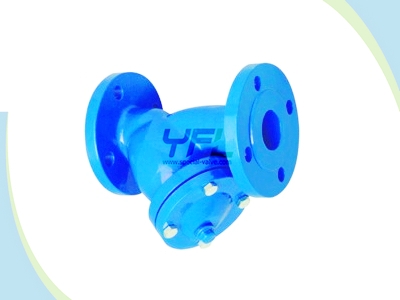

The SV ductile cast iron Y type strainer is widely use to serve the medium of water and steam in the low pressure pipelines of municipal engineering. The SV ductile cast iron Y type strainer can be produced according to standards of EN 1074, BS 2080, DIN 3202 F1, JIS B2002.

Inquiry Now

Features
Specification

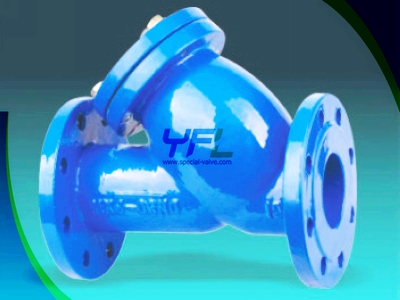

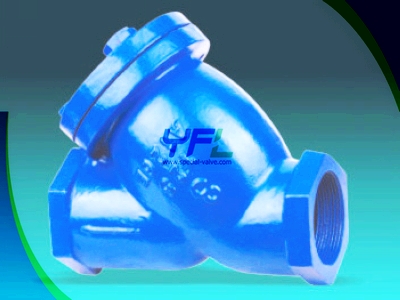

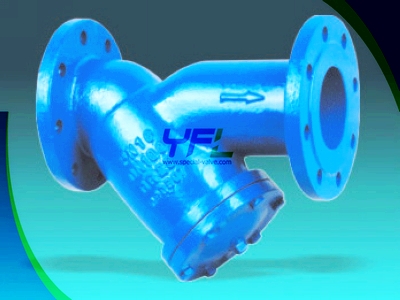

The SV cast iron Y type strainer has flanged end and threaded end;
The SV ductile cast iron Y type strainer has screen in materials of stainless steel 304;
Bolted bonnet design.

P roduct range:

Size: DN15-DN600, 1/2’’ ～24’’
Pressure rating: PN6, PN10, PN16, 125PSI, 150PSI, 10K
End connection: Flanged end, threaded end
Body materials: Grey cast iron, Ductile cast iron,GG25, GGG40, GGG50, FC200, FCD40
Screen materials: 304, 316

Technical standards:

Design: EN1074, BS2080, DIN 3202 F1, JIS B2002
Face to Face: BS5152, EN 558-1, JIS B2002
Flanged ends: BS4504, JIS B2012,ASME B16.5
Test and inspection: API 598
