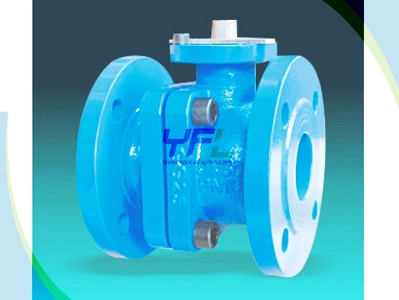

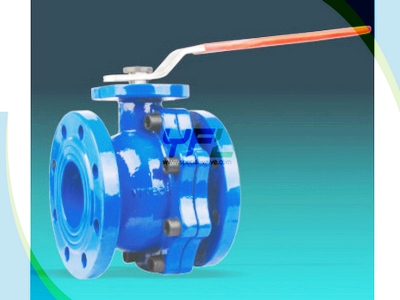

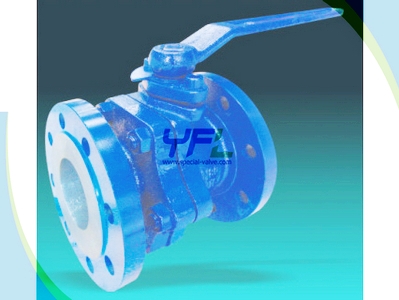

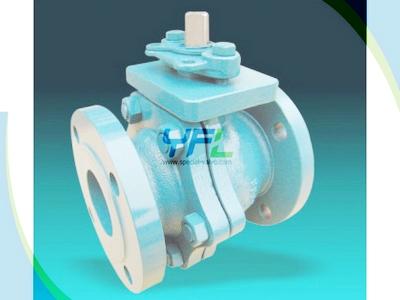

JIS 7S-48 Full Bore Two Piece FC200 Ball Valve

The SV ductile cast iron ball valve is widely used to serve the medium of water and steam in the low pressure pipelines of municipal engineering. The SV ductile cast iron ball valve can be produced according to standards of API 6D, DIN3357, JIS 7S-48.

Inquiry Now

Features
Specification

The SV GGG50 ball valve has full bore and reduced bore design;
The SV GG25 ball valve has two piece body design;
Soft seat in material of PTFE;
Anti-static, fire safe design;
Anti blow out stem design;
Floating ball design.

P roduct range:

Size: DN15-DN300, 1/2’’ ～12’’
Pressure rating: PN6, PN10, PN16, 125PSI, 150PSI, 10K
End connection: Flanged end
Body materials: Grey cast iron, Ductile cast iron,GG25, GGG40, GGG50, FC200, FCD40
Seat materials: PTFE
Operation: lever, gear, electric, pneumatic

Technical standards:

Design: API 6D, DIN 3357, JIS 7S-48
Face to Face: BS5159, ANSI B16.10, JIS B2002, EN558-1 series 14/15
Flanged ends: BS4504, ASME B16.5, JIS B2212, DIN2533
Test and inspection: API 598, DIN3230
