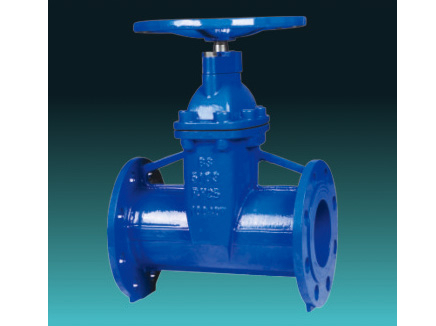

BS 5163/ DIN 3352 Rising Stem DI Resilient Seated Gate Valve

The SV BS 5163/DIN 3352 resilient seated gate valve is widely use to serve the medium of water and steam in the low pressure pipelines of municipal engineering. The SV ductile cast iron resilient seated gate valve can be also produced according to standards of KSB 2234, EN 558-1, EN 1171, SABS 669, EN 1074, ISO 2531.

Inquiry Now

Features
Specification

The SV BS5163 resilient seated gate valve has non rising stem and rising stem design;
Bolted bonnet, outside screw and yoke available;
The SV DIN3352 resilient seated gate valve can be flanged end, socket end, spigot end;
With pad for actuator available;
Resilient seated with NBR or EPDM.

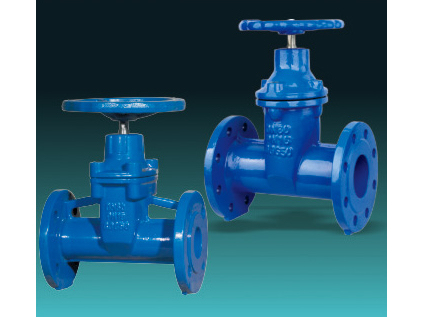

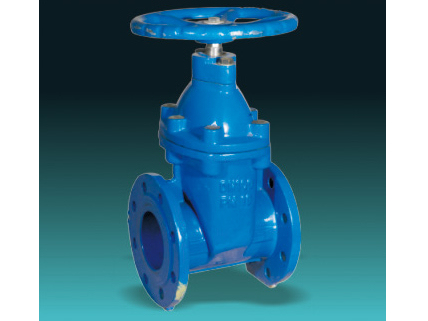

BS5163 Type A DI resilient seated gate valves BS5163 Type B DI Resilient seat gate valves DIN 3352 F5 DI resilient seat gate valves

Product range:

Size: DN40-DN900,1 1/2’’ ～36’’
Pressure rating: PN6, PN10, PN16, PN25, 125PSI, 150PSI, 5k, 7.5k, 10k, 16K
End connection: Flanged end, socket end, spigot end
Body materials: Grey cast iron, Ductile cast iron, GG25, GGG40, GGG50, FC200
Wedge materials: Grey cast iron/ Ductile cast iron with NBR/EPDM
Operation: handwheel, gear, electric, pneumatic

Technical standards:

Design: BS 5163 Type A/B, DIN 3352, KSB 2234, EN 558-1, EN 1171, SABS 669, EN 1074, ISO 2531
Face to Face: EN558-1 series 3/4/14/15, DIN 3202 F4/F5, KSB 2234
Flanged ends: BS 4504, ASME B16.5, ASME B16.47
Test and inspection: API 598
