The HC high speed secondary shredder is specially design for fine shredding the solid waste into size of 5 mm to 60 mm with design output of 300 Kgs/h to 800 Kgs/H (depends on materials’ density).

Applications:

Suitable for but not limited to

Woven bag, PET bottle, Plastic barrel, ABS, Fiber  Tire, Rubber products, Leather products

Wood, Timber, Tree root, Wood pallets, Plywood             Power cable, copper wire, tube

           Commercial and industrial paper                light metal, aluminum can, Aluminum scrap

 E-waste, TV shell, Washing machine shell, PCB        MSW, RDF, SRF, MRF, Industrail waste

Main components:

R type Rotor:

The R type rotor is suitable for pulverizing hard pipe, thick wall materials and sheets etc.

V type Rotor:

The V type rotor is suitable for pulverizing PET bottles, normal pipe, tube and plastic film etc.

S type Rotor:

The S type rotor is suitable for pulverizing very hard materials such as rubber head, thick wall pipe, thick board, power cable or fine pulverizing for RDF (20-30mm).

K type Rotor:

The K type rotor is suitable for secondary pulverizing treatment for any materials except metallic materials.

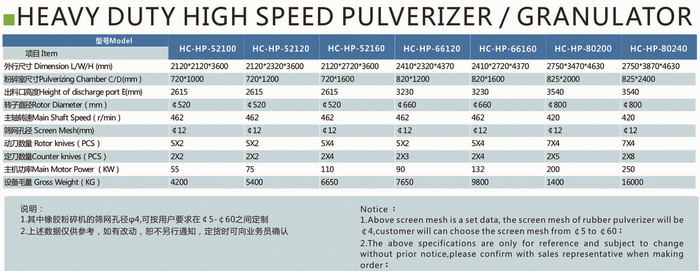

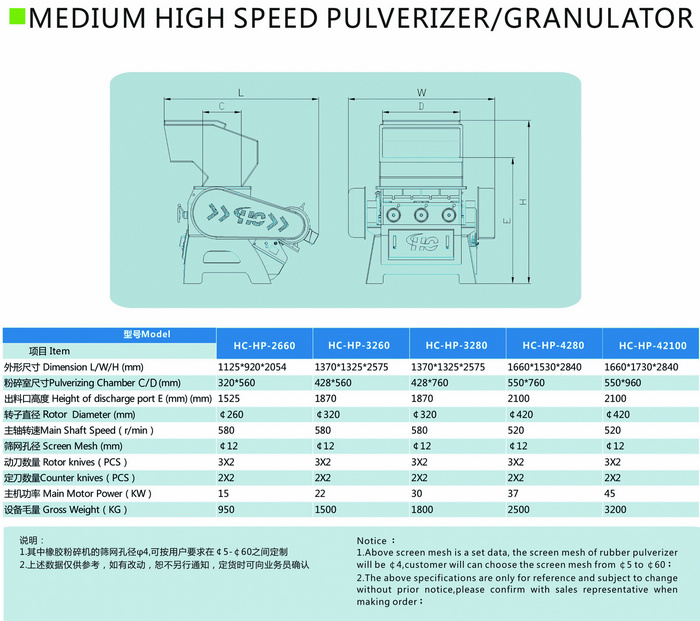

Model Parameters:

Customized high speed secondary pulverizer are supplied to our customers according to specific feeding materials, capacity and output size.
