DIN Carbon Steel Basket Type Strainer

DIN Carbon Steel Basket Type Strainer

    The SV API/DIN basket type Strainer is comprised by basket type body, screen, blind flange cover, bolts and nuts.

    When the fluid go through the SV basket type strainer, the solid particle impurity will be captured by the screen and the clean fluid will pass the screen and discharge from the outlet.

    When the screen needs cleaning, unscrew the drain plug at the bottom of body to discharge the fluid and then dismantle the blind flange cover to take out the screen for cleaning. After cleaning, install the screen in the body.

Inquiry Now
  • Features
  • Specification

  • The SV basket type strainer screens the solid particle impurity to protect the compressor, pump, instrument and other equipments;
  • Compact structure, small pressure loss, large filters capacity, various application, convenient maintenance, low price;
  • Different screen specification according to different medium;

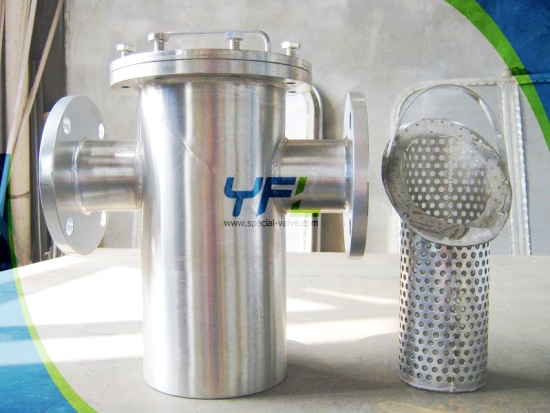

  • The SV stainless steel basket type strainer is suitable for weak corrosive medium for petrochemical and petroleum production such as water, oil, ammonia, hydrocarbon etc.; corrosive medium for petrochemical production such as caustic soda, soda ash, concentrated dilute sulphuric acid, carbonic acid, aldehyde acid etc.; cryogenic medium for refrigeration such as methane, liquid ammonia, liquid oxygen and other cryogen; sanitary medium in food and pharmaceutical industry such as beer, beverage, dairy product, sugar syrup etc.;
  • The material is usually the same as pipe;
  • The inlet and outlet can be with same height or the inlet is upper and the outlet is lower;

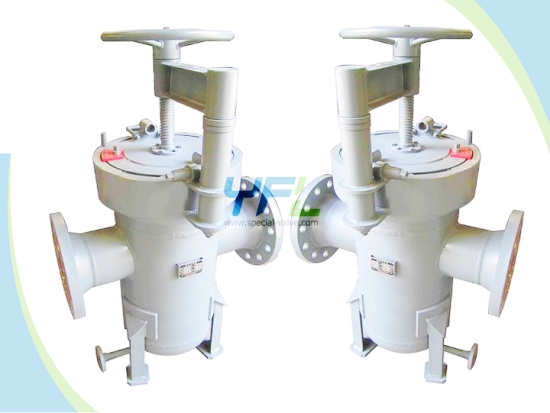

  • Optional quick open design.

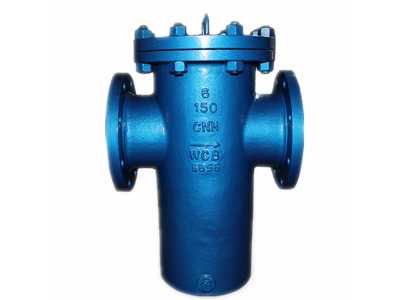

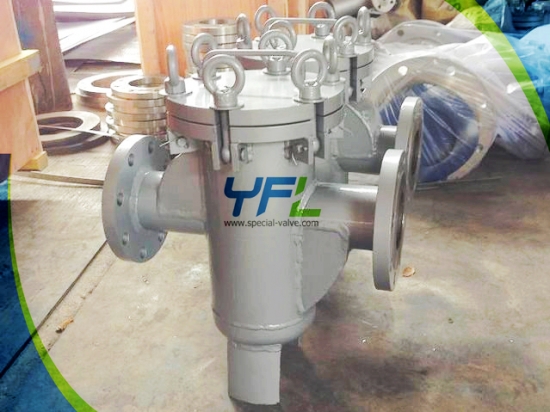

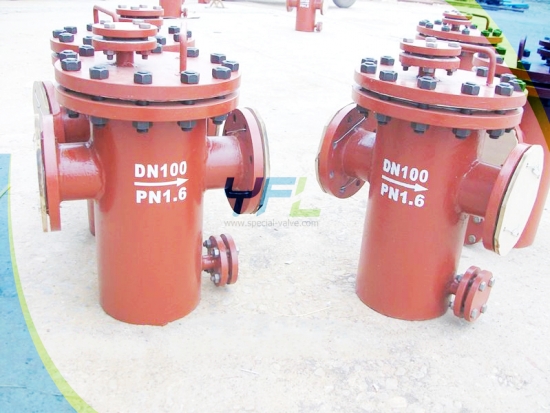

WCB carbon steel Basket type strainersupper and lower T type strainersBasket type strainers

Product range:

Size: 1/2"48" (DN151200)

Pressure rating: Class 150600 (PN10PN100)

End connection: RF, RTJ, BW

Body materials: cast iron, ductile iron, carbon steel WCB, chrome molybdenum steel WC6/WC9, austenitic stainless steel CF8/CF8M, duplex stainless steel 4A/5A etc.

Screen materials: SS304, SS316 etc.

Technical standards:

Design: ASME B16.34

Face to Face: ASME B16.10

BW ends: ASME B16.25, ASME B31.8, EN12627

Flanged ends: ASME B16.5, ASME B16.47, EN1092

Pressure and temperature rating: API609, ASME B16.34

Wall thickness: ASME B16.34

Test and inspection: API 598
