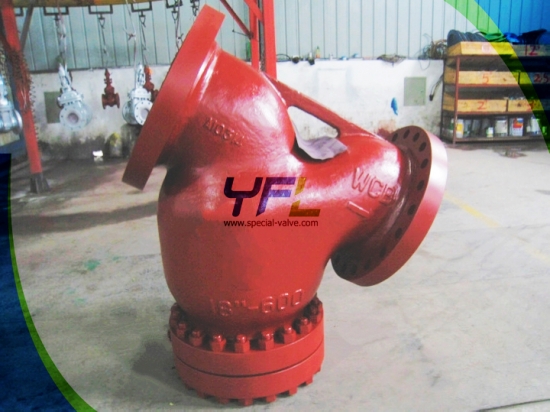

API High Pressure WCB Y Type Strainer

API High Pressure WCB Y Type Strainer

    The SV API/DIN Y type strainer with magnet cartridage is comprised by Y type body, screen, blind flange cover, bolts and nuts. The T type body can be made of forged steel or cast steel.

    When the fluid go through the SV Y type strainer, the solid particle impurity will be captured by the screen and the clean fluid will pass the screen and discharge from the outlet.

    When the screen needs cleaning, unscrew the drain plug at the bottom of body to discharge the fluid and then dismantle the blind flange cover to take out the screen for cleaning. After cleaning, install the screen in the body.

Inquiry Now
  • Features
  • Specification

  • The SV high pressure Y type strainer is usually installed in the inlet side of pressure reducing valve, relief valve and float valve;
  • It screens the solid particle impurity to protect the valve, compressor, pump, instrument and other equipments;
  • Compact structure, small pressure loss, large filters capacity, various application, convenient maintenance, small fluid resistance, convenient for drain contamination;
  • Different screen specification according to different medium;
  • The SV stainless steel Y type strainer is suitable for weak corrosive medium for petrochemical and petroleum production such as water, oil, ammonia, hydrocarbon etc.; corrosive medium for petrochemical production such as caustic soda, soda ash, concentrated dilute sulphuric acid, carbonic acid, aldehyde acid etc.; cryogenic medium for refrigeration such as methane, liquid ammonia, liquid oxygen and other cryogen; sanitary medium in food and pharmaceutical industry such as beer, beverage, dairy product, sugar syrup etc.;
  • The materials can be forged steel such as A105, LF2, F304, F316 or cast steel such as WCB, CF8, CF8M etc.;
  • The SV T type strainer can be installed horizontally and vertically;
  • The end connection can be flanged, Butt-welded, screw, socket welded;
  • Optional magnet cartridage.

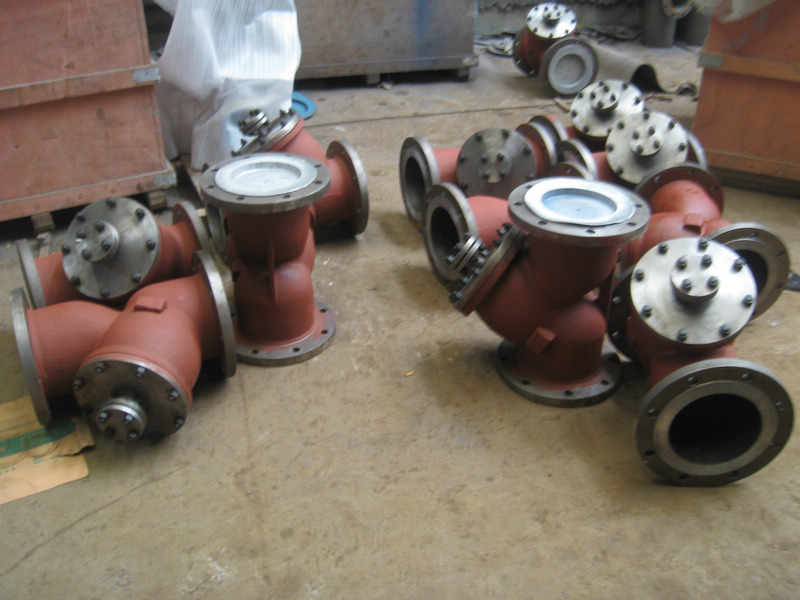

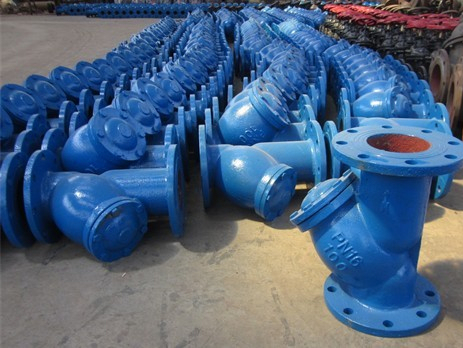

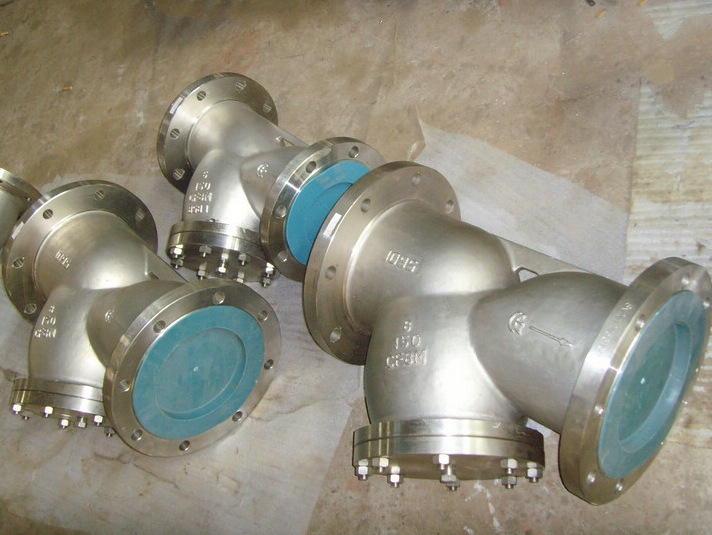

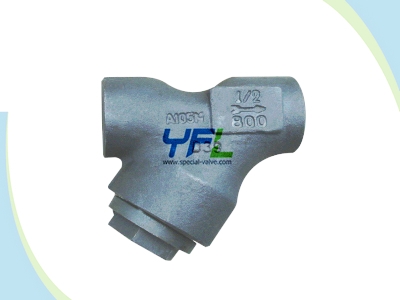

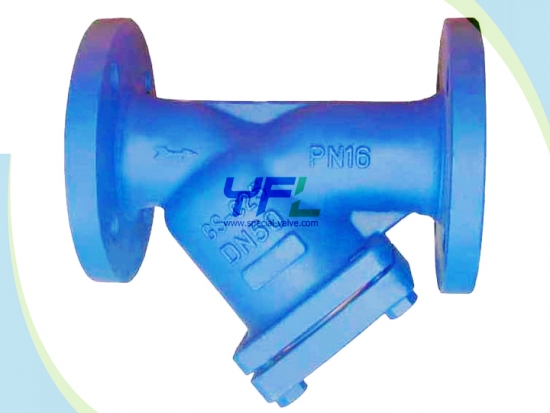

API WCB Y type strainers API CF8 Y type strainers with magnet cartridageDIN Cast iron Y type strainers

Product range:

  • Size: 1/2"24" (DN15600)
  • Pressure rating: Class 1502500 (PN10PN420)
  • End connection: RF, RTJ, BW, SW, NPT
  • Body materials: cast iron, ductile iron, carbon steel WCB/A105/LF2, chrome molybdenum steel WC6/WC9/F11/F22, austenitic stainless steel CF8/CF8M/F304/F316, duplex stainless steel 4A/5A/F51/F53/F55/F904L etc.
  • Screen materials: SS304, SS316 etc.

Technical standards:

  • Design: ASME B16.34
  • Face to Face: ASME B16.10
  • BW ends: ASME B16.25, ASME B31.8, EN12627
  • SW ends: ASME B16.11
  • Screw ends: ANSI B1.20
  • Flanged ends: ASME B16.5, ASME B16.47, EN1092
  • Pressure and temperature rating: API609, ASME B16.34
  • Wall thickness: ASME B16.34
  • Test and inspection: API 598
