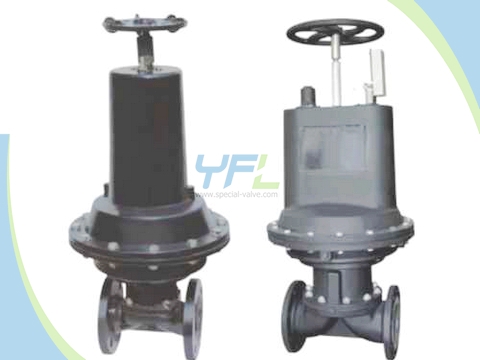

Pneumatic Weir Type Diaphragm Valve

Pneumatic Weir Type Diaphragm Valve

    The YFL Diaphragm valve is a new type globe valve has a diaphragm in material of rubber as close element to control the medium.

    The rubber diaphragm separates the lower body and the upper bonnet so that the stem and bonnet above the diaphragm won’t be corroded by corrosive medium.

Inquiry Now
  • Features
  • Specification

  • Packing seal is no need;
  • No leakage of medium;
  • Rubber diaphragm with good seal performance;
  • Only suitable for low pressure applications duo to the materials of diaphragm;

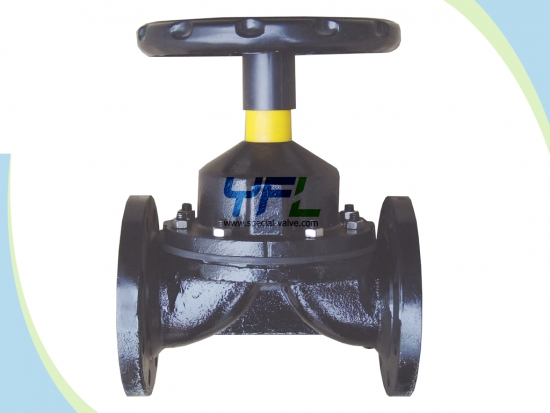

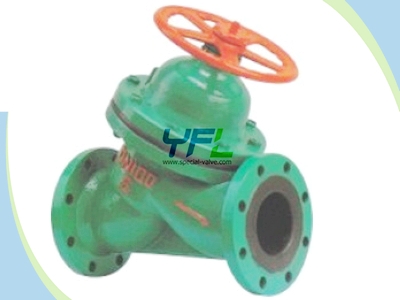

  • The diaphragm valve can be classified into weir type, straight type, angle type, wedge type and globe type according to the structure;
  • The pneumatic diaphragm valve can be classified into fail closed type, fail open type and reciprocal type;

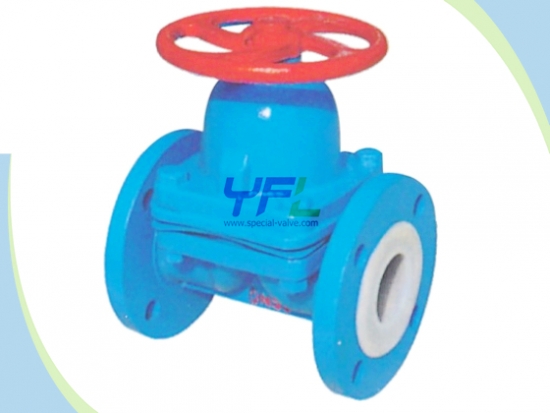

  • Body without lined, rubber lined body and fluorine lined body are available;
  • Small pressure loss duo to streamline flow passage;
  • Replaceable diaphragm;
  • Low maintenance cost;
  • Suitable for slurry with solid particles;
  • Suitable for corrosive medium

Product range:

Size: DN15DN400 1/2’’ 16’’

Pressure rating: PN6 PN10 PN16

End connection: Flanged RF

Body materials: WCB Cast Iron Ductile cast iron PVC Stainless steel

Lined materials: Rubber: NR BR IIR CR; Fluorine: PP ETFE PFA PTFE

Diaphragm: EPDM VITON NBR CR Natural rubber

Technical standards:

Design: GB12239 BS5156

Face to Face: GB12221 BS5156

Flanged ends: GB4216.4 BS4504

Test and inspection: GB/T13927 BS5156
