Hydropower Station Hydroturbine Inlet Ball Valve

Hydropower Station Hydroturbine Inlet Ball Valve

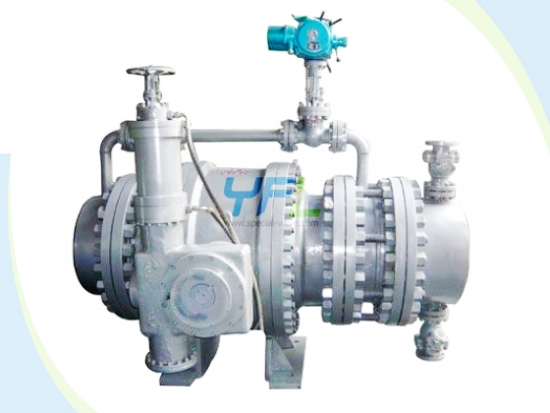

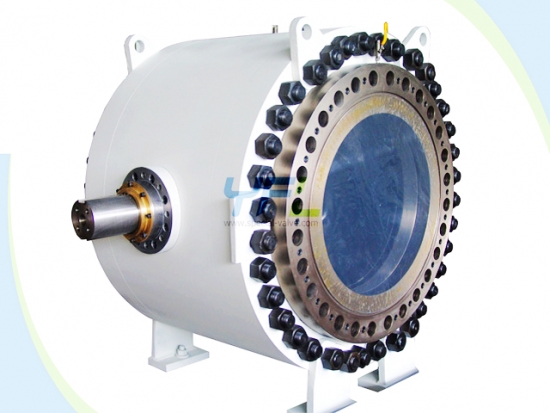

    The SV hydropower station hydroturbine inlet ball valve with Short pipes is advanced control equipment which installed at the inlet of the water turbine, and the SV water turbine inlet ball valve is widely used as exhaust valve in irrigation works, high-pressure and medium-sized power station and various pump stations to replace non return valve and gate valve.

Inquiry Now
  • Features
  • Specification

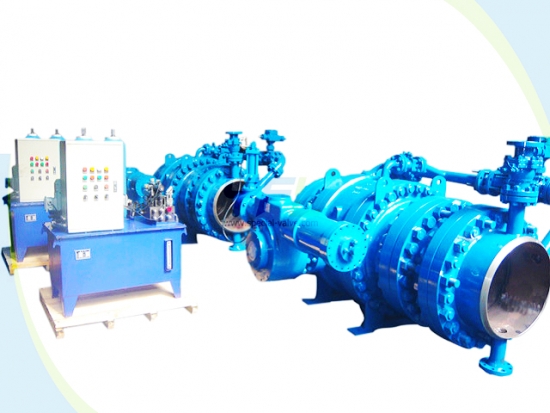

  • Full set of SV hydraulic control hydro turbine inlet ball valve includes main ball valve, hydraulic power station, dismantling joints, connection short pipes at both ends, bypass system etc;
  • The SV water turbine inlet ball valve is suitable for service containing mud and sand;
  • Suitable for on-off application but not suitable for regulating applications;
  • When repairing the turbine or generator, cut off the water through the hydro turbine inlet ball valve to repair safely;
  • When the turbine or generator work abnormally, cut off the water quickly and effectively to prevent accidents;
  •  Small fluid resistance, simple sphere structure, small size, light in weight, automatic, steady and reliable performance, easy to operate, remote control, easy  maintenance, long service life.

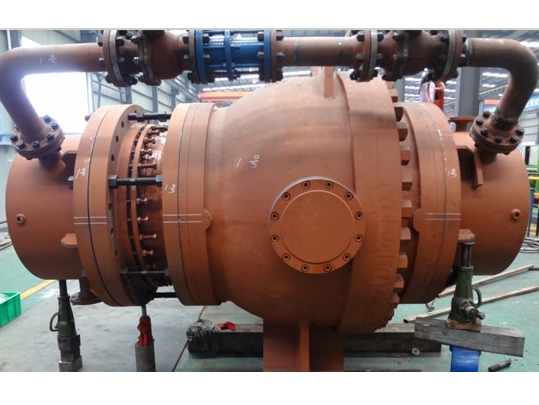

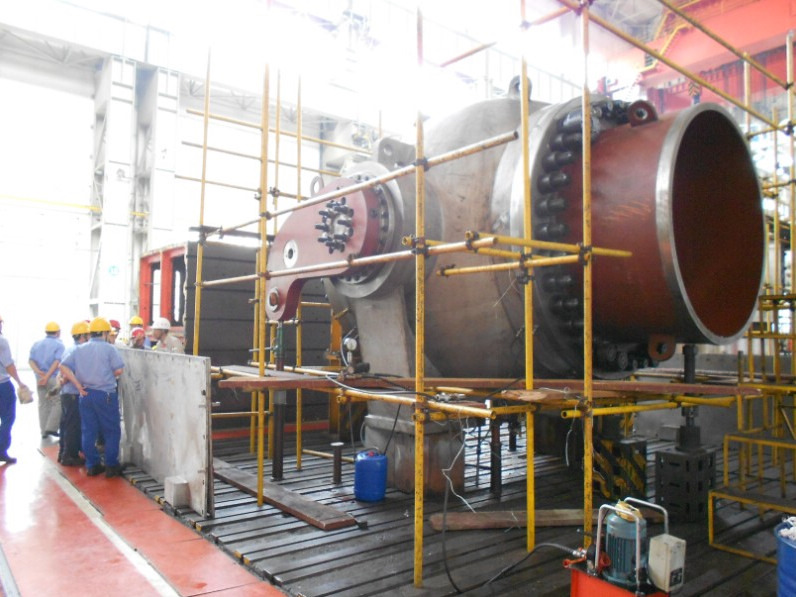

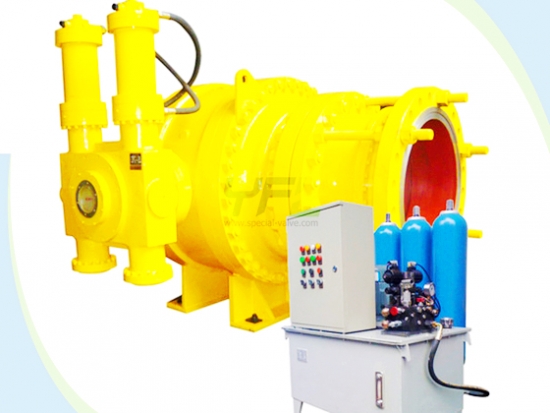

water power station water turbine inlet ball valvesend user inpsection water turbine inlet ball valvesHydraulic control slow closed hemispher ball valves

Product range:

  • Size: 12"140" (DN3003500)
  • Pressure rating: Class 150900 (PN2.5PN160)
  • End connection: BW
  • Body materials: WCB, A105, CF8, CF8M etc.
  • Seat: PTFE, RPTFE, NYLON, DEVLON, PEEK etc.
  • Operation: hydraulic
  • Optional Control power supply: AC220V, DC220V, DC110V, DC24V

Technical standards:

  • Design: API 6D
  • Face to Face: ASME B16.10
  • BW ends: ASME B16.25, ASME B31.8
  • Wall thickness: ASME B16.34
  • Test and inspection: API 598
  • Fireproof test: API 607, API 6FA
  • Pressure and temperature rating: ASME B16.34
