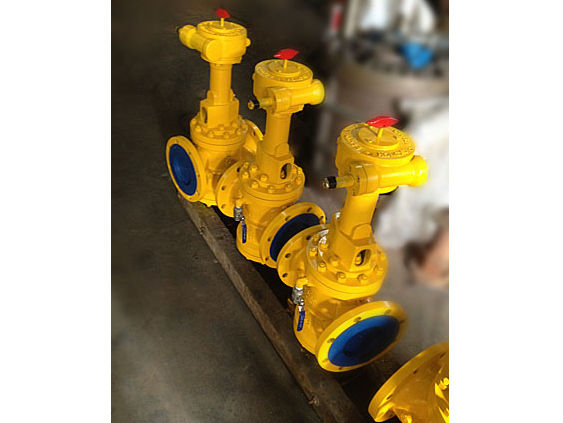

Gear Operated Orbit Plug Valve

Gear Operated Orbit Plug Valve

The YFL Orbit Plug Valve is applicable to cutting and connection of pipelines medium in various industries such as petroleum, chemical, pharmaceutical, fertilizer and electrical power under nominal pressure of class 150lbs to 900lbs and working temperature of -29—120℃.

Inquiry Now

Features
Specification

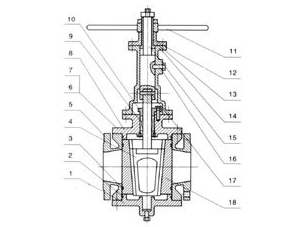

The sealing of the YFL orbit plug valve is realized by the sealing rings around the plug;
The sealing rings are fixed by the unique swallow tail sink;
The advantage of the YFL orbit plug valve is that the plug and seat are separated during opening and closing orbit the plug valve and there is no friction and abrasion between the plug and seat;
Soft seal ensures zero leakage.

Orbit plug valves

Product range:

Size: 2"～14"
Pressure rating: Class 150 ～900
End connection: RF RTJ BW
Body materials: WCB CF8 CF8M CF3 CF3M UNS N08904 etc.
Plug materials: WCB A351 CF8 CF8M CF3 CF3M etc.
Operation: Bare stem Wrench gear electric pneumatic

Technical standards:

Design: API 599 API 6D
Face to Face: ASME B16.10
BW ends: ASME B16.25
Flanged ends: ASME B16.5
Test and inspection: API 598
Pressure and temperature rating: ASME B16.34
