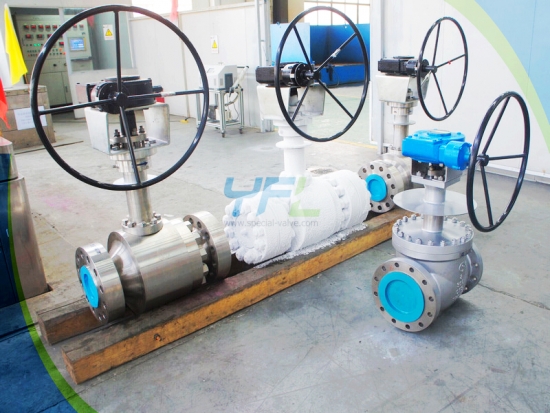

Extended Stem Top Entry Cryogenic Ball Valve

    The SV extended stem cryogenic ball valve is suitable for service with working temperature down to -196 such as ethylene, LNG, LPG, liquid oxygen, liquid nitrogen, liquid argon, liquid hydrogen and CO2 .

    The materials of SV cryogenic ball valve for inflammable and explosive service are very important. If the mechanical characteristic, strength and rigidity of materials can’t meet the requirements of low temperature working condition, outside leakage from body and inner leakage from sealing face will cause explosion.

Inquiry Now
  • Features
  • Specification
  • The rough machining parts of SV Cryogenic ball valves need special low temperature treatments to relieve the mechanical stress to make sure the materials performance in low temperature working condition and finish machining dimensions to avoid leakage duo to expansion, shrinkage and deformation of materials in low temperature working condition;
  • The finish machining parts need strict wash to clean any oil contamination before assembly to ensure working performance.
  • The SV low temperature ball valves need special low temperature materials impact test equipments, liquid nitrogen storage device, low temperature treatment tank, cryogenic valves shell and seal test bench;
  • Extended stem protects the stem packing to make sure the stem seal;
  • Valve stem treated with chrome plated or nit riding to enhance the surface hardness of stem
  • Lip seal ensures reliable seal in low temperature working condition;
  • Imported seal materials with stable low temperature performance;
  • Low fugitive control;
  • Cavity pressure self relief;
  • Soft seal and metal seal structure;
  • Floating ball and trunnion ball structure;
  • Side entry and top entry structure;
  • Top entry structure is suitable for online maintenance;
  • Fire safe, anti-static and anti-blowout stem design.

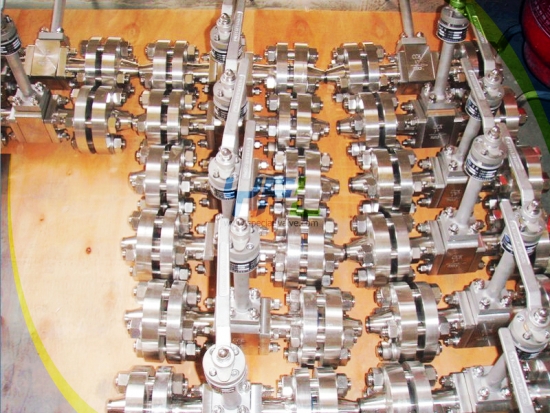

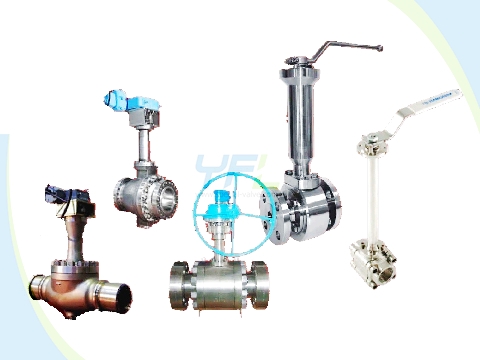

cryogenic forged steel ball valvescryogenic floating ball valvescryogenic trunnion mounted ball valvesCF8 cryogenic floating ball valves

Product range:

  • Size: 1/2"32" (DN15800)
  • Pressure rating: Class 1501500 (PN16PN250)
  • End connection: RF, RTJ, BW
  • Bore: Full bore, reduced bore
  • Body materials: LCB/LF2 (-46), LC3/LF3 (-101), CF8/304 (-196) etc.
  • Ball materials: LF2, LF3, F304, F316 etc.
  • Seat materials: TFM, NRG, PCTFE, PEEK, KEL-F or metal to metal seal etc.
  • Operation: Bare stem, wrench, gear, electric, pneumatic, electro-hydraulic, gas over oil actuator

Technical standards:

  • Design: API 6D, ASME B16.34, DIN 3357-1EN12516-1
  • Face to Face: ASME B16.10, DIN 3202F1/F4/F5/F17/F18
  • BW ends: ASME B16.25, ASME B31.8, EN12627
  • Flanged ends: ASME B16.5, ASME B16.47, EN1092
  • Wall thickness: ASME B16.34
  • Fireproof test: API 607, API 6FA
  • Test and inspection: API 598, API 6D, DIN3230/3,EN12266
  • Pressure and temperature rating: ASME B16.34
  • Materials: NACE MR 01-75
