Durable Extended Bellows Seal Globe Valve For Chlorine,Seal Eccentric Plug Valve

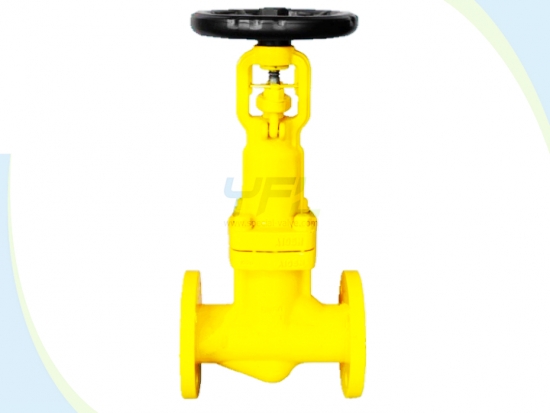

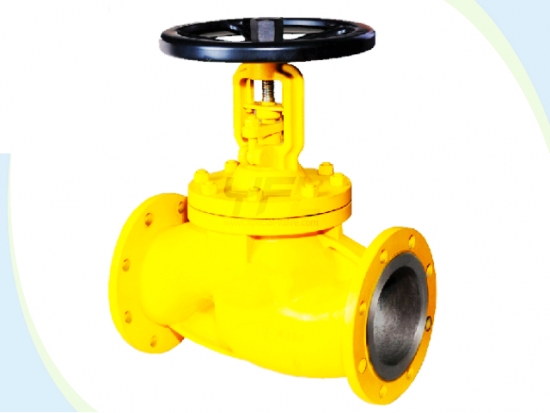

Extended Bellows Seal Globe Valve For Chlorine

The SV bellows seal globe valve for chlorine is designed for the special requirements of chlorine transmission. The SV bellows seal globe valves for chlorine is very suitable for applications with strong corrosive and highly poisonous medium.

Inquiry Now

Features
Specification

The SV bellows seal globe valve for chlorine has features of excellent seal performance, reliable working condition, anti-corrosive, zero leakage;
The metal bellows connect the cover and stem to keep the stem without leakage;
The SV bellows seal globe valve for chlorine has double seal design with bellows seal and packing seal protects against leakage and provides excellent seal;
Grease nipple can lubricate the stem, nut and sleeve.

Product range:

Size: DN15～DN400
Pressure rating: PN16, PN25, PN40
End connection: Flanged RF, RTJ, BW
Body materials: A105, WCB, CF8, CF8M, GS-C25, 1.4301, 1.4401 etc.
Operation: handwheel, gear, electric, pneumatic

Technical standards:

Design: DIN3356
Face to Face: DIN3202
Flanged ends: DIN2543, DIN2545
BW ends: EN12627
Test and inspection: API598, DIN3230
