DIN Side Entry Cast & Forged Floating Ball Valve

    The YFL DIN side entry cast & forged floating ball valve has a floating ball supported by two seats.

    The pressure of media will force the ball to press onto the seat seal ring at the outlet side to make sure tight seal at the outlet.

    The pressure of media is all transferred to the seat through the ball.

    When the pressure of media is high, the seat can’t stand the high pressure and there will be some displacements of ball.
    The YFL split body floating ball valve is only suitable for low & middle pressure and small size working condition.

Inquiry Now
  • Features
  • Specification

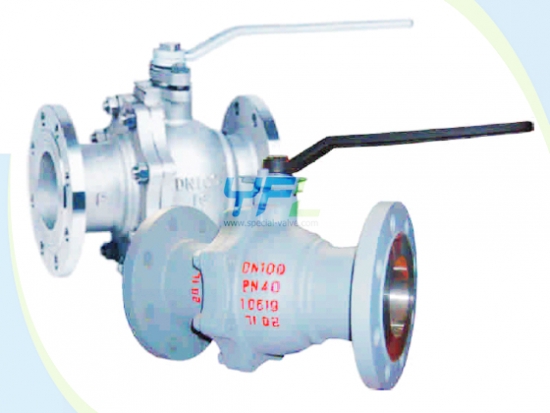

  • The YFL split body cast steel floating ball valve can be divided into one piece body and two piece split body;
  • The one piece body floating ball valve is reduced bore, and the body is integrally cast without bonnet so there is no leakage point on the body;
  • The two pieces body is connected by bolts and nuts;
  • Soft seal structure and metal to metal seal structure;
  • Designed according to API or DIN standards;
  • The YFL forged steel floating ball valve can be divided into two piece split body and three piece split body.
  • The two pieces split body and three pieces split body is connected by bolts and nuts;
  • Soft seal structure and metal to metal seal structure;
  • Designed according to API or DIN standards;
  • Locked when it is at the full open or full close position, Locking device can prevent incorrect operation;
  • Optional extended stem or extended bonnet;
  • Optional bare stem with ISO 5211 top flange;
  • Fire safe, anti-static and anti-blowout stem design.

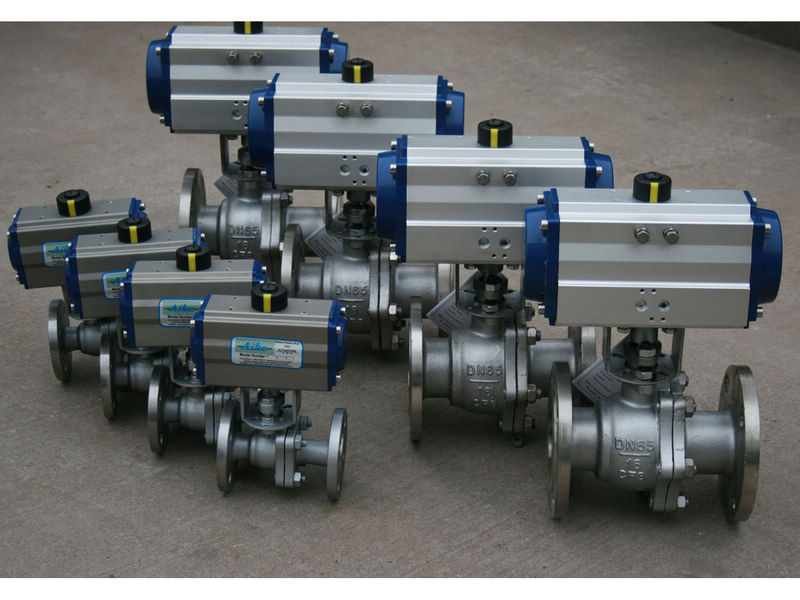

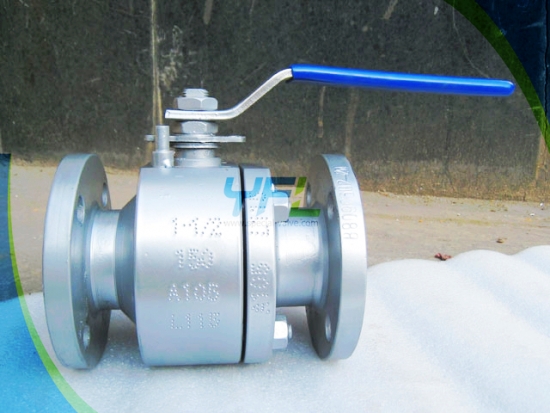

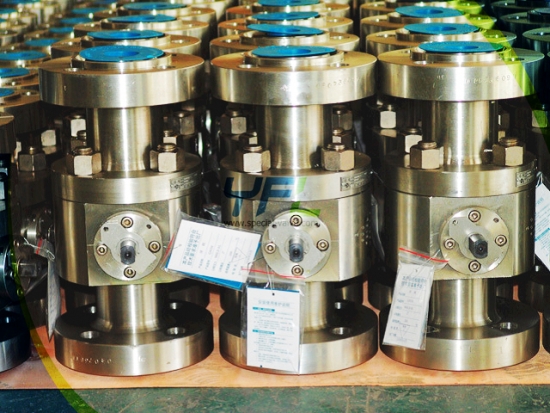

Pneumatic cast steel floating ball valvestwo pieces body cast steel floating ball valvethree pieces body forged floating ball valves

Product range:

  • Size: 2"56" (DN501400)
  • Pressure rating: Class 1502500 (PN16PN420)
  • End connection: RF RTJ BW
  • Body materials: Carbon steel WCB/1.0619 Low temperature steel LCB/1.1156 Stainless steel CF8/1.4308 CF3/1.4306 CF8M/1.4408 CF3M/1.4404 CF8C/1.4552 Duplex stainless steel UNS S31803/2205/4A UNS S32207; N08094/1.4539 etc.
  • Ball materials: A105+ENP F304 F316 F304L F316L F51 F53 F55 904L etc.;
  • Seat materials: PTFE RPTFE NYLON DEVLON PEEK PPL FKM or metal to metal seal etc.
  • Operation: Bare stem wrench gear electric pneumatic electro-hydraulic gas over oil actuator

Technical standards:

  • Design: API6D ASME B16.34 DIN 3357-1EN12516-1
  • Face to Face: ASME B16.10 DIN 3202F1/F4/F5/F17/F18
  • BW ends: ASME B16.25 ASME B31.8 EN12627
  • Flanged ends: ASME B16.5 ASME B16.47 EN1092
  • Wall thickness: ASME B16.34
  • Fireproof test: API 607 API 6FA
  • Test and inspection: API 598 API 6D DIN3230/3 EN12266
  • Pressure and temperature rating: ASME B16.34
