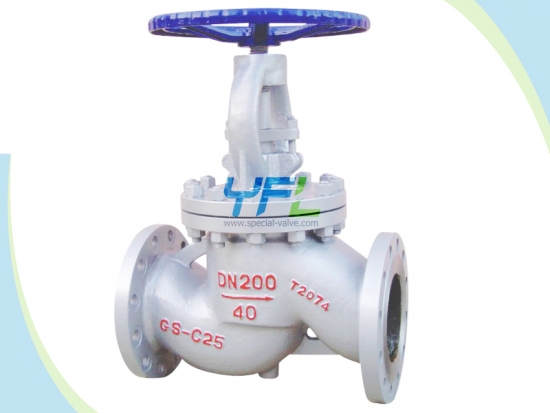

DIN 3356 Bolted Bonnet Cast Steel GS-C25 Globe Valve

DIN 3356 Bolted Bonnet Cast Steel GS-C25 Globe Valve

    The YFL bolted bonnet cast steel Globe Valve can be produced according to API 600, BS 1873, DIN 3356. The YFL cast steel globe valve is suitable for cutting off or regulating the medium in high pressure and high temperature pipelines.

Inquiry Now
  • Features
  • Specification

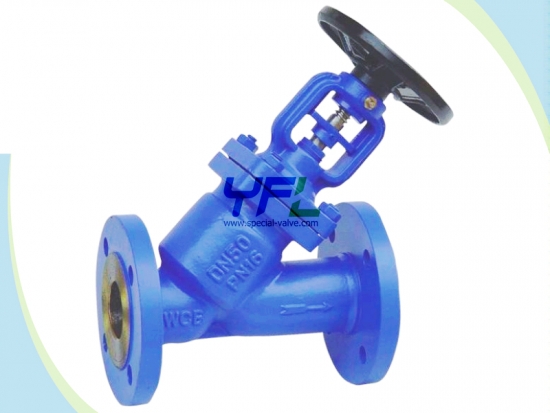

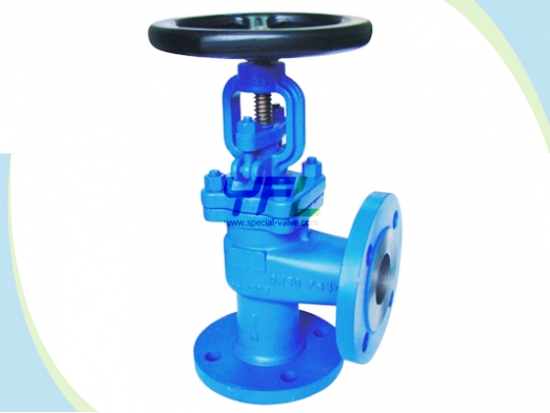

There are YFL straight flow globe valve, YFL Y type globe valve and YFL angle type globe valve.

  • BB: Bolted bonnet, OS&Y: Outside screw and yoke;
  • Yoke integral with bonnet;
  • Loose disc, plug disc available;
  • Single disc and double disc available;
  • Flat, ball, cone sealing face available;
  • Better sealing performance than gate valve;
  • Low in high out or high in low out available.

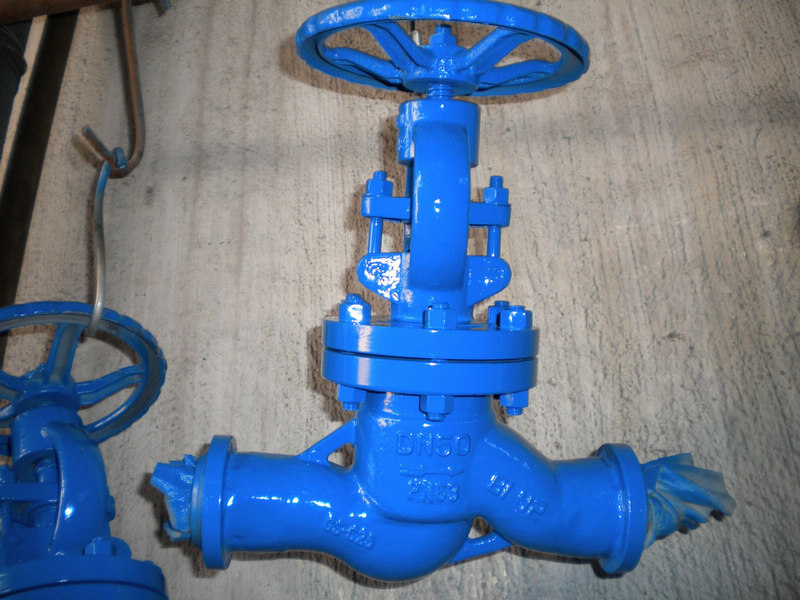

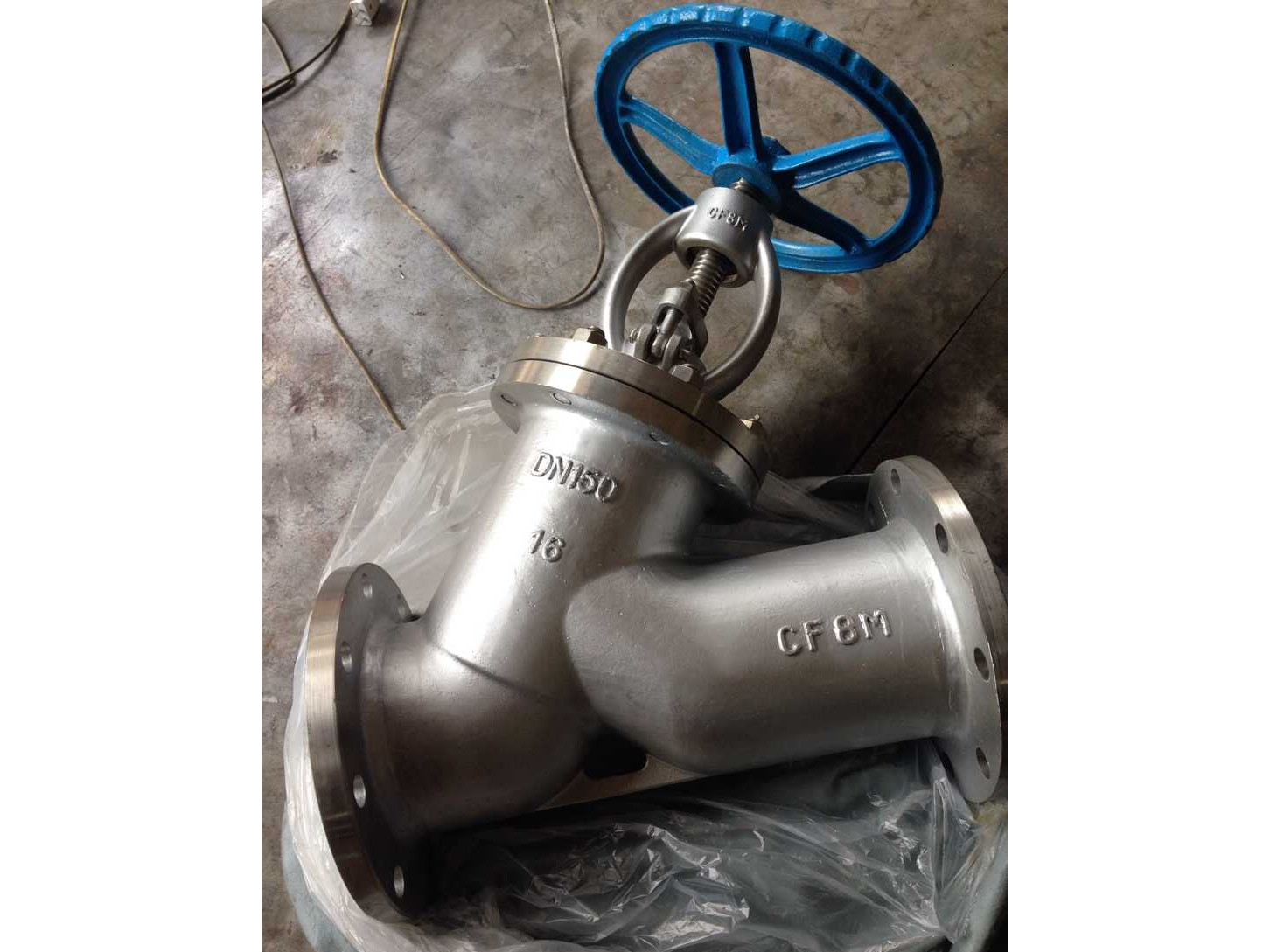

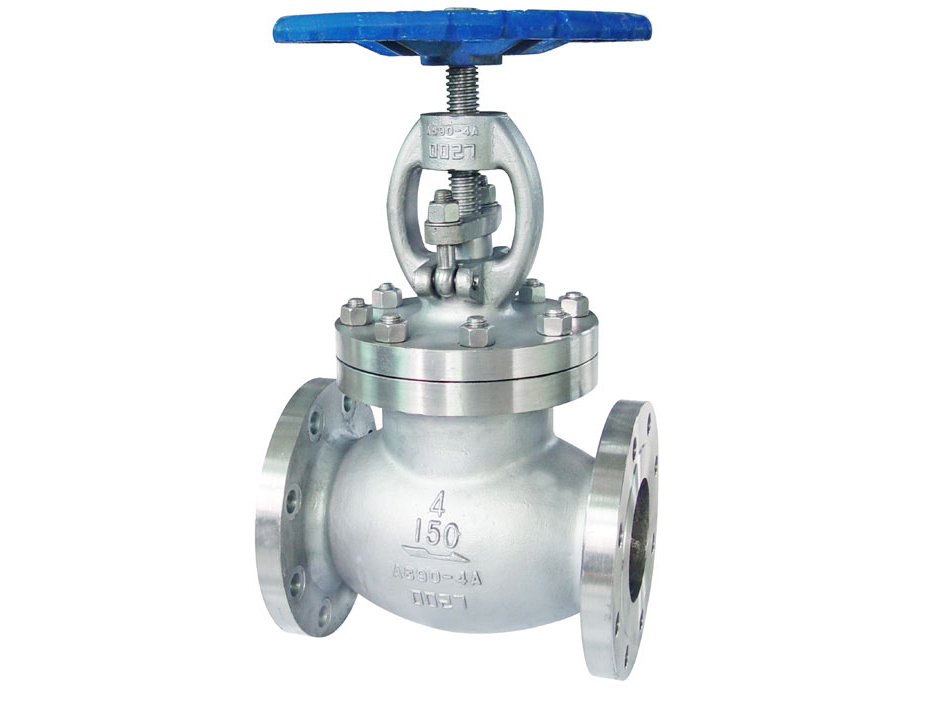

DIN PN 63 DN50 GS-C25 Straight Flow Globe valvesBS1873 Duplex stainless steel 4A globe valvesDIN PN16 DN150 CF8M Y type globe valves

Product range:

  • Size: DN50DN600 2’’ 24’’
  • Pressure rating: PN16PN160 150lbs1500lbs
  • End connection: Flanged RF BW
  • Body materials: WCB WCC LCB LCC WC1 WC6 WC9 C5 C12 C12A CF8 CF3 CF8M CF8C CF3M 4A 5A UNS S31803 SAF 2205 SAF 2507 CD4MCU etc.

Operation: handwheel gear electric pneumatic

Technical standards:

  • Design: API 600 BS1873 DIN3356
  • Face to Face: ASME B16.10 DIN3202 F1/F2/F32
  • Flanged ends: ASME B16.5 ASME B16.47 EN 1092
  • BW ends: ASME B16.25 ASME B31.8 EN12627
  • Test and inspection: API 598 DIN3230 EN12266
