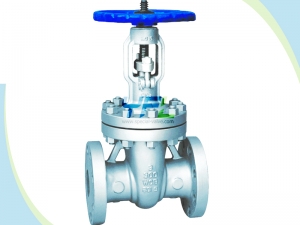

DIN 3352 Bolted Bonnet Cast Steel WCB Gate Valve

DIN 3352 Bolted Bonnet Cast Steel WCB Gate Valve

The YFL bolted bonnet cast steel gate valve can be produced according to API 600, DIN3352, BS 1414, BS EN1984, JIS and GOST Standards.

Inquiry Now

Features
Specification

There are YFL rising stem gate valves, YFL non-rising stem gate valves; YFL double wedges gate valves, YFL high temperature gate valves in materials of WC6, WC9, C5, C12A etc.

Full bore design;
BB: Bolted bonnet;
OS&Y: Outside screw and yoke;
Flexible wedge, fully guided;
Renewable seat ring;
Forged T-head stem;
Rising stem and non-rising handwheel;
Live load packing;
Bypass available.

DIN PN100 DN400 GS-C25 Double Wedge Gate Valve with by pass API600 600#RF C12A GATE VALVE BODY DIN PN40 DN 150 WC6 GATE VALES DIN non-rising stem gate valves DIN PN16 DN600 WCB GATE VALVE DIN3352 F4 PN16 DN600 GATE VALVES PN25 DN300 1.4408 DIN GATE VALVES API 600 300#RF WC9 GATE VALVES

Product range:

Size: DN 50～DN1200 2’’ ～48’’
Pressure rating: PN16～PN420 150lbs～2500lbs
End connection: Flanged RF BW
Body materials: WCB WCC LCB LCC WC1 WC6 WC9 C5 C12 C12A CF8 CF3 CF8M CF8C CF3M 4A 5A etc.
Operation: handwheel gear electric pneumatic

Technical standards:

Design: API 600 DIN3352 BS1414 BS EN1984
Face to Face: ASME B16.10 DIN3202 F4 F5 F7 F15
Flanged ends: ASME B16.5 ASME B16.47 EN 1092
BW ends: ASME B16.25 ASME B31.8 EN12627
Test and inspection: API 598 DIN3230 EN12266
