Buried City Gas Slab Gate Valves With Gas Exhaust

    The SV buried city gas slab gate valve with gas exhaust is specially designed for natural gas, liquefied petroleum gas, coal gas transmission pipeline to solve the sealing problem and open failure caused by gas coking and achieve excellent sealing performance and long service life.

Inquiry Now
  • Features
  • Specification

  • The SV city gas slab gate valve seat ring adopts the floating seat ring structure with O-type seal ring seal and pre-tightening force to achieve inlet and outlet bidirectional seal and the open torque with this structure is only 1/2 that of the normal valve, able to open and close the valve easily;
  • The seat ring uses the sealing face lined with PTFE to has double seals of PTFE to metal and metal to metal, The PTFE sealing face also can remove the dirt on the wedge;
  • The external surface of SV buried type city gas slab gate valve is corrosion resisting treated with epoxy coal bitumen and can be the same duration with the pipeline;
  • Buried underground with gas exhaust is available;
  • Non-rising handwheel;
  • With or without through conduit available.

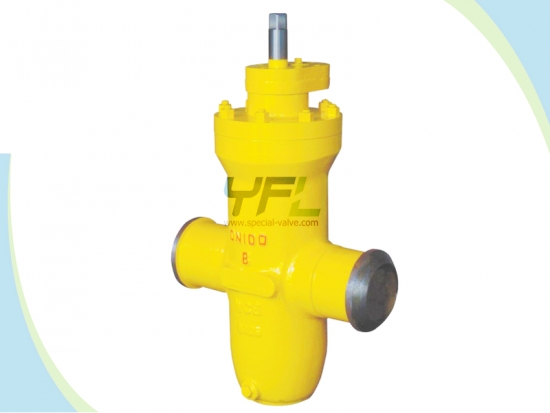

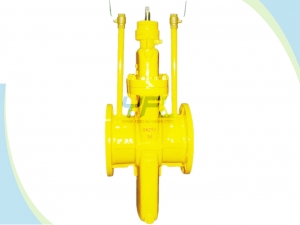

City gas slab gate valvesCity gas slab gate valves with gas exhaustPN64 DN100 BW ends fuel gas slab gate valves

Product range:

  • Size: DN25DN1100, 1’’ 44’’
  • Pressure rating: PN16, 150lbs
  • End connection: Flanged RF, BW
  • Body materials: WCB, LCB, CF8, CF8M etc.
  • Seat materials: A105+PTFE, LF2+PTFE, F304+PTFE, F316+PTFE
  • Wedge materials: A105+ENP, 16Mn+ENP, A240 304, A240 316
  • Operation: handwheel, gear, electric, pneumatic

Technical standards:

  • Design: API 6D
  • Face to Face: API 6D
  • Flanged ends: ASME B16.5
  • Test and inspection: API 598
