BS 5352 Threaded Forged Steel A105 Ball Type Check Valve

BS 5352 Threaded Forged Steel A105 Ball Type Check Valve

    The SV BS 5352 small size forging steel check valve has body in forging materials to be suitable for high pressure working condition such as power station.

Inquiry Now
  • Features
  • Specification

  • The forged steel check valve has full bore and reduced bore design;
  • The forged check valve has Bolted bonnet, welded bonnet, pressure seal bonnet;
  • Ball type, Y type, lift type and swing type available;
  • Spring loaded for lift type;
  • Flanged ends, BW ends, SW ends and threaded ends available.

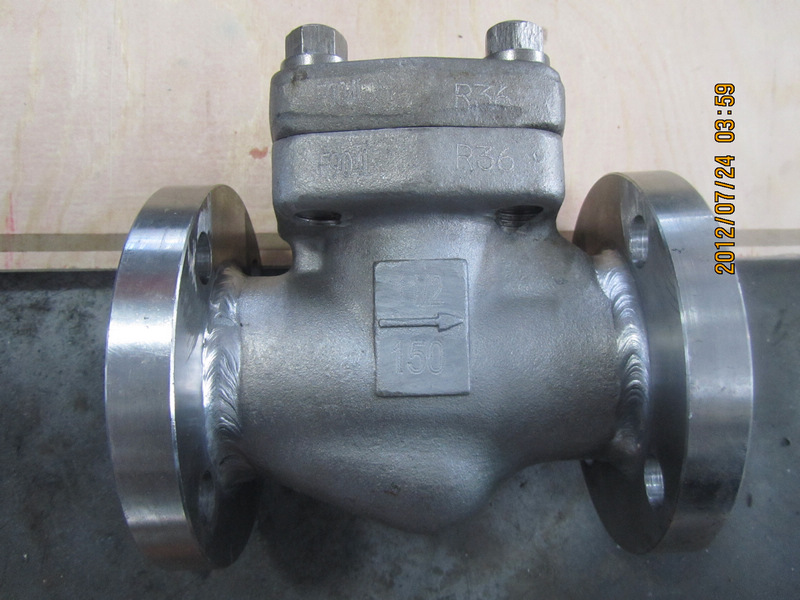

API 602 F904L Flanged Forged Check ValveAPI602 2500lbs Pressure Seal Bonnet F91 Forged check valve

Product range:

  • Size: DN8DN50, 1/4’’ 2’’
  • Pressure rating: PN16PN420, 150lbs2500lbs
  • End connection: Flanged RF, BW, SW, Threaded
  • Body materials: A105, LF2, LF3, F11, F22, F91, F304, F304L, F316, F316L, F51, F53, F55, F904L etc.

Technical standards:

  • Design: API 602, BS 5352
  • Face to Face: ASME B16.10
  • Flanged ends: ASME B16.5, ASME B16.47, EN 1092
  • BW ends: ASME B16.25, ASME B31.8, EN12627
  • SW ends: ASME B16.11
  • Threaded ends: ASME B1.20.1
  • Test and inspection: API 598, DIN3230, EN12266
