AWWA C509/AWWA C515 NRS DI Resilient Seated Gate Valve

    The YFL AWWA C509/AWWA C515 DI resilient seated Gate Valve is widely used to serve the medium of water and steam in the low pressure pipelines of municipal engineering.

Inquiry Now
  • Features
  • Specification

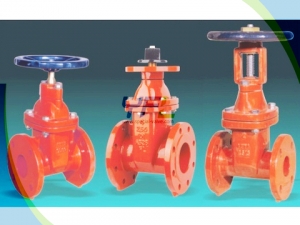

  • The YFL cast iron resilient seated gate valve has non rising stem and rising stem design;
  • Bolted bonnet, outside screw and yoke available;

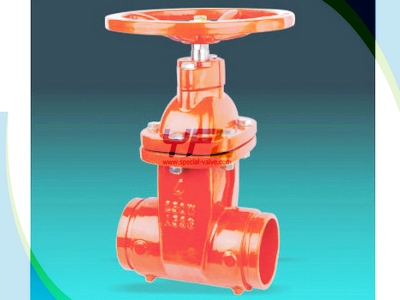

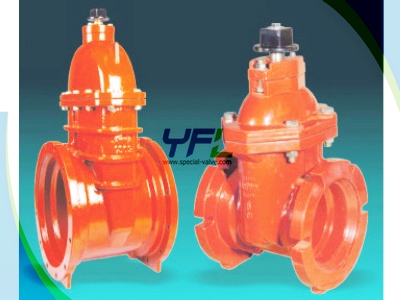

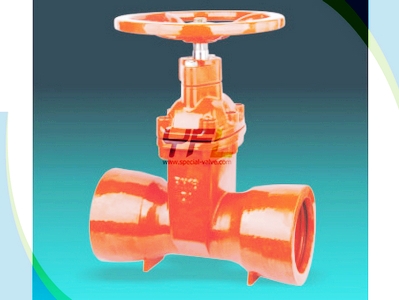

  • The YFL GGG50 resilient seal gate valve can be flanged end, mechanical joint end, groove end or push-on end;
  • With pad for actuator available;
  • Resilient seated with NBR or EPDM.

Product range:

  • Size: 1 1/2’’ 32’’
  • Pressure rating: 125PSI 150PSI
  • End connection: Flanged end mechanical joint end groove end push-on end
  • Body materials: Grey cast iron Ductile cast iron
  • Wedge materials: Grey cast iron/ Ductile cast iron with NBR/EPDM
  • Operation: handwheel gear electric pneumatic

Technical standards:

  • Design: AWWA C509 AWWA C515
  • Face to Face: ASME B16.10
  • Flanged ends: ASME B16.5 ASME B16.47
  • Mechanical joint ends: ANSI/AWWA C111/A21.11
  • Test and inspection: API 598
