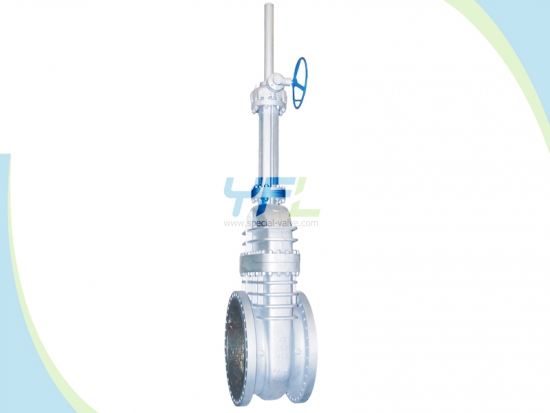

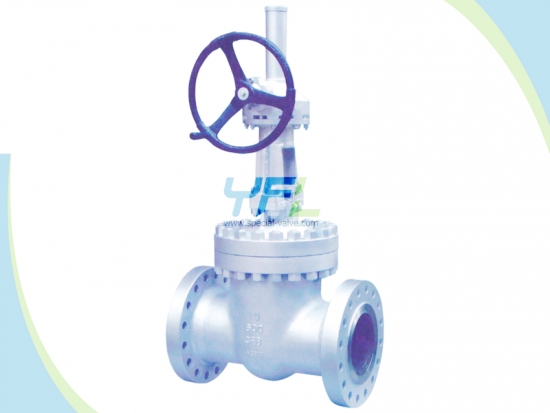

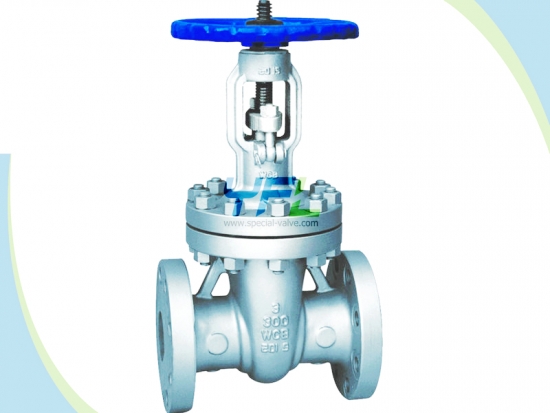

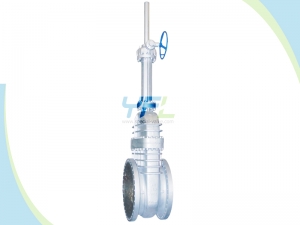

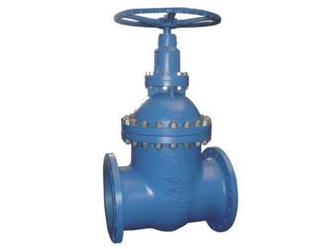

DIN 3352 Bolted Bonnet Cast Steel WCB Gate Valve

DIN 3352 Bolted Bonnet Cast Steel WCB Gate Valve

    The SV bolted bonnet cast steel gate valve can be produced according to API 600, DIN3352, BS 1414, BS EN1984, JIS and GOST Standards.

Inquiry Now
  • Features
  • Specification

There are SV rising stem gate valves, SV non-rising stem gate valves; SV double wedges gate valves, SV high temperature gate valves in materials of WC6, WC9, C5, C12A etc.

  • Full bore design;
  • BB: Bolted bonnet;
  • OS&Y: Outside screw and yoke;
  • Flexible wedge, fully guided;
  • Renewable seat ring;
  • Forged T-head stem;
  • Rising stem and non-rising handwheel;
  • Live load packing;
  • Bypass available.

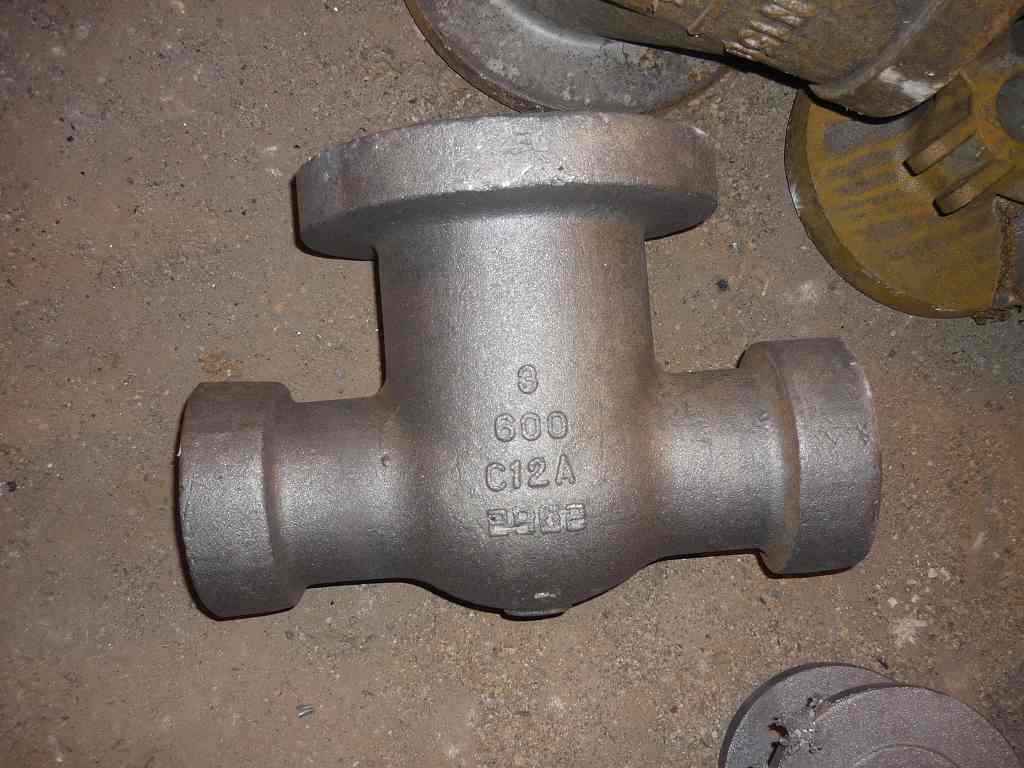

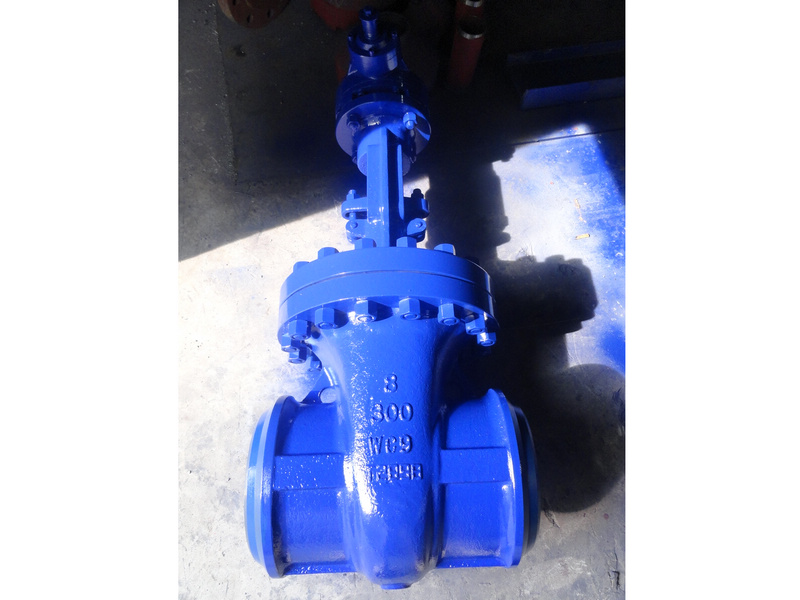

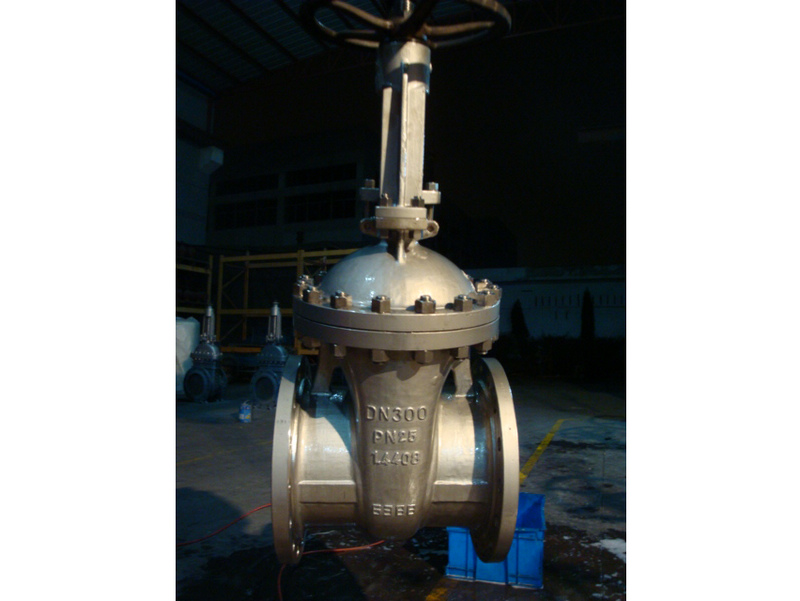

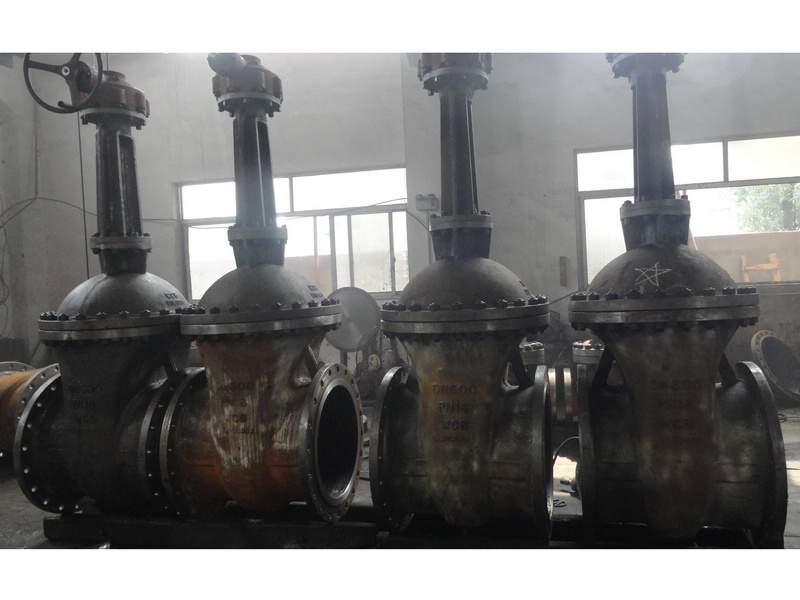

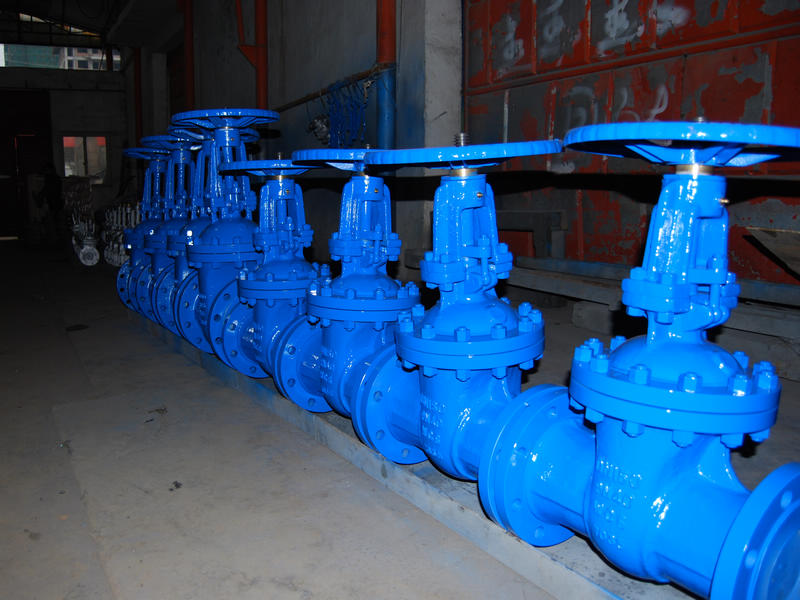

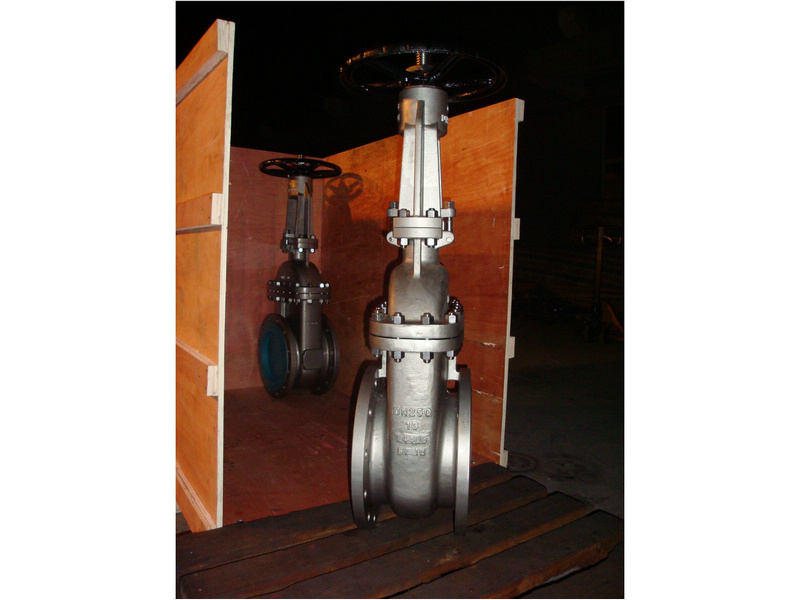

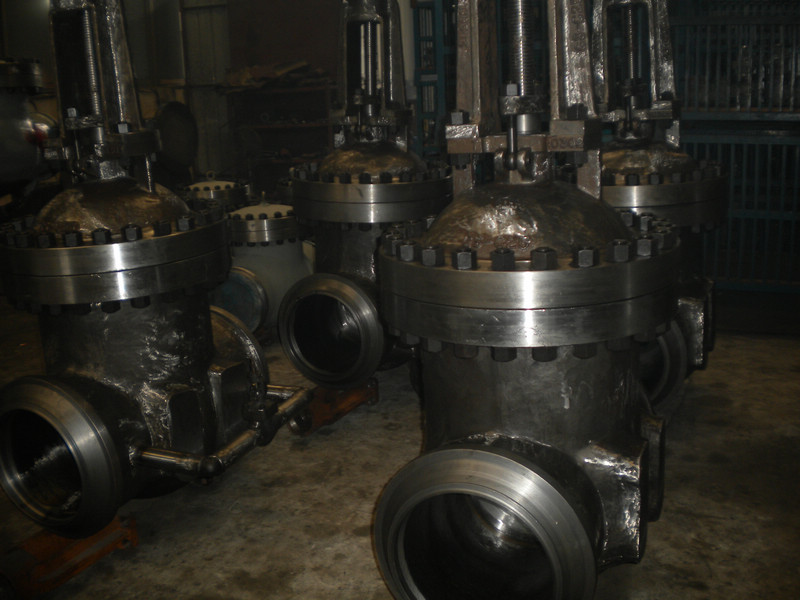

DIN PN100 DN400 GS-C25 Double Wedge Gate Valve with by passAPI600 600#RF C12A GATE VALVE BODYDIN PN40 DN 150 WC6 GATE VALESDIN non-rising stem gate valvesDIN PN16 DN600 WCB GATE VALVEDIN3352 F4 PN16 DN600 GATE VALVESPN25 DN300 1.4408 DIN GATE VALVESAPI 600 300#RF WC9 GATE VALVES

Product range:

  • Size: DN50DN1200,2’’ 48’’
  • Pressure rating: PN16PN420, 150lbs2500lbs
  • End connection: Flanged RF, BW
  • Body materials: WCB, WCC, LCB, LCC, WC1, WC6, WC9, C5, C12, C12A, CF8, CF3, CF8M, CF8C, CF3M, 4A, 5A etc.
  • Operation: handwheel, gear, electric, pneumatic

Technical standards:

  • Design: API 600, DIN3352, BS1414, BS EN1984
  • Face to Face: ASME B16.10, DIN3202 F4, F5, F7, F15
  • Flanged ends: ASME B16.5, ASME B16.47, EN 1092
  • BW ends: ASME B16.25, ASME B31.8, EN12627
  • Test and inspection: API 598, DIN3230, EN12266
