API 6D Full Opening Bolted Cover C5 Swing Check Valve

API 6D Full opening Swing Check Valve

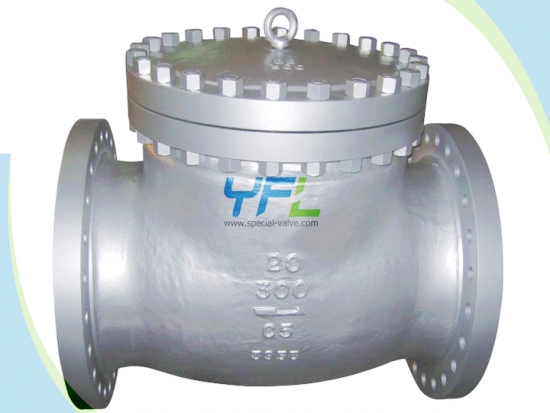

API 6D Full Opening Bolted Cover C5 Swing Check Valve

API 6D Full Opening Bolted Cover C5 Swing Check Valve

API 6D Full Opening Bolted Cover C5 Swing Check Valve

API 6D Full Opening Bolted Cover C5 Swing Check Valve

The SV Bolted Bonnet Swing Check Valve can be produced according to API 6D, BS1868 and DIN3840. There is swing check valve, lift type check valve, wafer dual plate check valve. The swing check valve according to API 6D can be fully opened.

Inquiry Now

Features
Specification

There is SV swing check valve and SV lift type check valve;
BC: Bolted Cover;

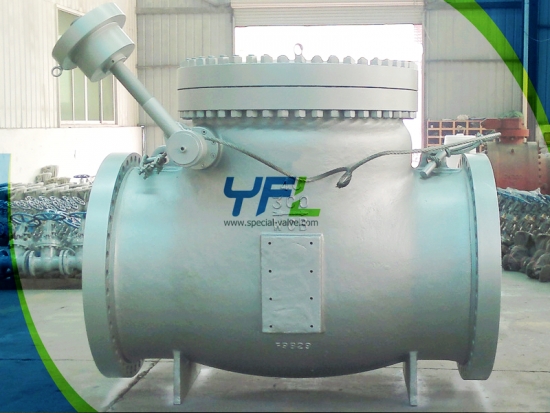

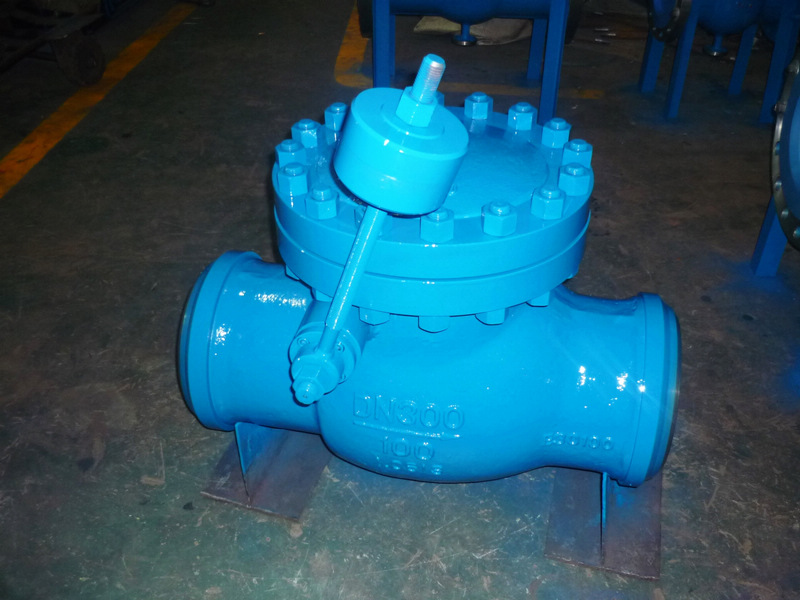

Outside lever and weight to slow closing;
Hydraulic control unit weighted mechanical accumulator;
Eye bolt available;
Spring loaded for lift type check valve;
Choice of swing type or lift type disc;
Horizontal or vertical installation.

BS1868 Lift Type Check Valve DIN PN100 DN300 1.0619 SWING CHECK VALVE WITH LEVER&WEIGHT BS1868 600#BW C12A SWING CHECK VALVE

Product range:

Size: DN 50～DN1000,2’’ ～40’’
Pressure rating: PN16～PN420, 150lbs～2500lbs
End connection: Flanged RF, BW
Body materials: WCB, WCC, LCB, LCC, WC1, WC6, WC9, C5, C12, C12A, CF8, CF3, CF8M, CF8C, CF3M, 4A, 5A, UNS S31803, SAF 2205, SAF 2507, CD4MCU etc.

Technical standards:

Design: API 600, BS1868, DIN3356
Face to Face: ASME B16.10, DIN3202 F1/F6
Flanged ends: ASME B16.5, ASME B16.47, EN 1092
BW ends: ASME B16.25, ASME B31.8, EN12627
Test and inspection: API 598, DIN3230, EN12266
