Wafer Center Line Fully PTFE Coated Butterfly Valve

Wafer Center Line Fully PTFE Coated Butterfly Valve

    The YFL center line wafer butterfly valve has a single piece body or double pieces split body with four flanged drilling holes for easy maintenance and installation between flanges to save space and weight.

    It features the shaft center line, the disc center line and the valve body center line in the same position.

    The YFL wafer concentric butterfly valve is rubber coated or fluorine lined to achieve bidirectional bubble tight seal with simple structure.

    It is classed as economical solution for both cutting off and throttling applications but not suitable for high pressure and high temperature working condition.

Inquiry Now
  • Features
  • Specification

  • Simple structure, small volume, light in weight, small installation space, quick open or close, small operate torque, small fluid resistance, suitable for large size pipeline, excellent regulating performance, good seal performance;
  • Center line structure, bidirectional seal and no installation direction requirement;
  • Upper and lower double half shafts, disc without pin, non-backed replaceable seat with good performance and longer service life;
  • One through shaft, disc with or without pin, backed seat or non-backed seat;
  • Square and short neck is easy for fixing nameplate and cost saving;
  • Easy installation and maintenance, no flanges and gaskets needed;
  • End flanges can meet different connection standards;
  • The YFL wafer center line butterfly valve has good seal performance of vulcanized seat, boding firm, good elasticity and low torque;
  • Rubber coated disc and body are abrasion resistant;
  • Fluorine lined disc and body are corrosive resistant;

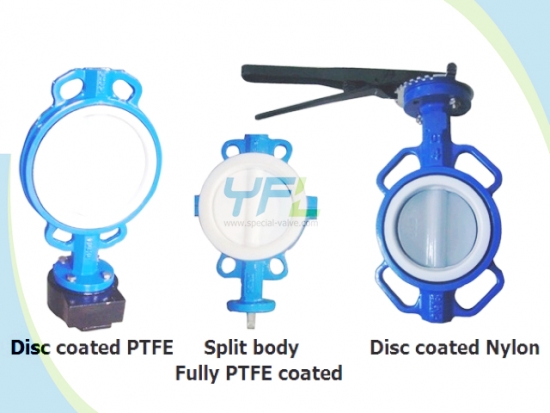

  • Full PTFE coated for corrosive medium like hydrofluoric acid, phosphoric acid, alkali chlorine etc.;
  • The YFL wafer aluminum bronze butterfly valve is suitable for sea water;
  • Extended bonnet or extended stem is available for underground installation.

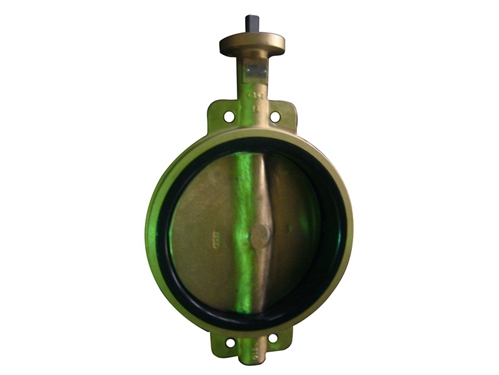

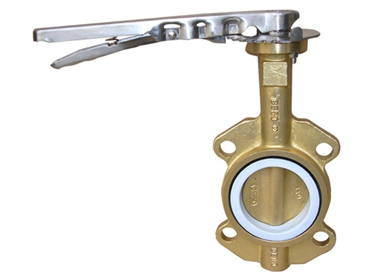

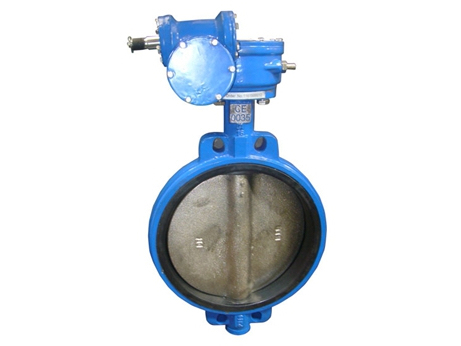

Wafer Extended bonnet butterfly valve with pinwafer Al-bronze butterfly valve without pinwafer sea water butterfly valves without pin

Product range:

  • Size: 1"24" (DN25600)
  • Pressure rating: PN10PN16
  • End connection: Wafer
  • Body materials:  GG25 GGG40 GGG50 CF8 CF8M 904L Aluminum bronze etc.
  • Disc materials: GGG40 GGG50 CF8 CF8M 904L Aluminum bronze etc.
  • Stem materials: stainless steel SS410 SS416 SS420 SS304 SS316 etc.
  • Seat materials: EPDM NBR WRAS-EPDM VITON Silicon PTFE Hyplon etc.
  • Operation: Bare stem lever gearbox and handwheel electric pneumatic.

Technical standards:

  • Design: API 609
  • Face to Face: API 609 EN558-1 20 Series BS5155 DIN3202 K1
  • End flange standard: DIN PN10/PN16 ANSI 125#/150# BS4504 PN10/PN16 JIS B2220 10K
  • Top flange standard: ISO 5211
  • Test and inspection: API 598
