Single & Double Flush Plug Valve

    The SV double flush plug valve is widely used in various industries such as petroleum, chemical, pharmaceutical; fertilizer and electrical power under nominal pressure of class 150lbs to 300lbs.

Inquiry Now
  • Features
  • Specification

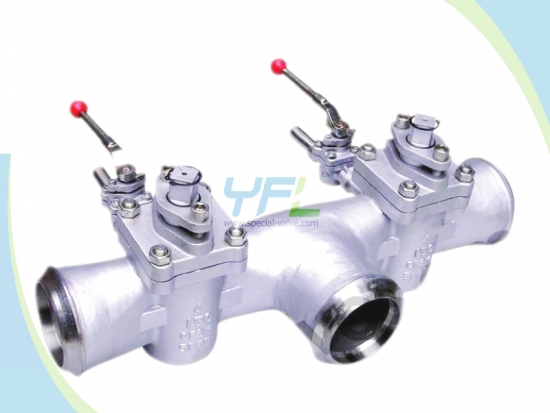

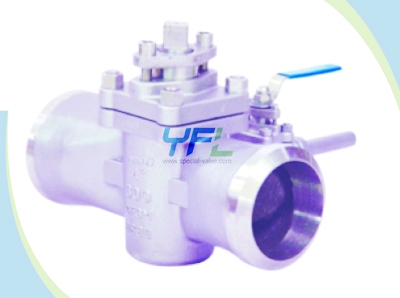

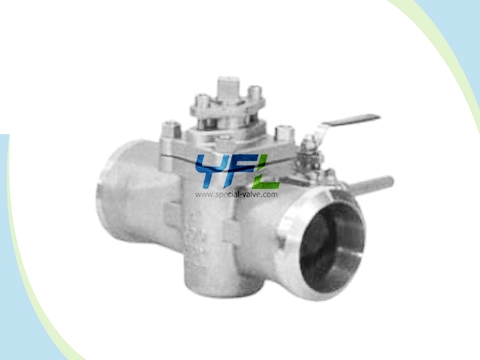

Plug valve with double flushPlug valve with single flush

Product range:

  • Size: 2"10"
  • Pressure rating: Class 150300
  • End connection: RF, RTJ, BW
  • Body materials: WCB, CF8, CF8M, CF3, CF3M, UNS N08904 etc.
  • Plug materials: WCB, A351 CF8, CF8M, CF3, CF3M etc.
  • Operation: Bare stem, Wrench, gear, electric, pneumatic

Technical standards:

  • Design: API 599, API 6D
  • Face to Face: ASME B16.10
  • BW ends: ASME B16.25
  • Flanged ends: ASME B16.5
  • Test and inspection: API 598
  • Pressure and temperature rating: ASME B16.34
