Self-operated Pressure Control Valve With Pilot

    The YFL self-operated pressure control valve with pilot utilizes the fluid own energy to adjust the valve opening automatically without any external power source. The YFL automatically pressure control valve is widely used as inlet valve or outlet valve for pressure reduction and stabilization of air, liquid and vapor in industries of petroleum, chemical engineering, electric power, metallurgy, food, light textile, machinery manufacturing and residential buildings etc.



Inquiry Now
  • Features
  • Specification

  • Pressure balanced single seat structure, easy for maintenance, low cost, energy saving, quick open flow characteristic, flexible operation, good sealing performance, stable fluid pressure, high precision of regulating, low leakage, suitable for high pressure difference and explosive working condition;
  • Equipped with condenser, the YFL self-operated pressure control valve can work continuous under 350steam condition;
  • Without packing, without friction movable trim components;
  • Pressure set value can be adjusted during working, so the YFL automatic pressure control valve is widely used for the micro pressure automatic regulation of fuel gas for various industrial furnace burning systems, protective gas for half-finished petroleum or oil tank, heat treatment protective gas etc.

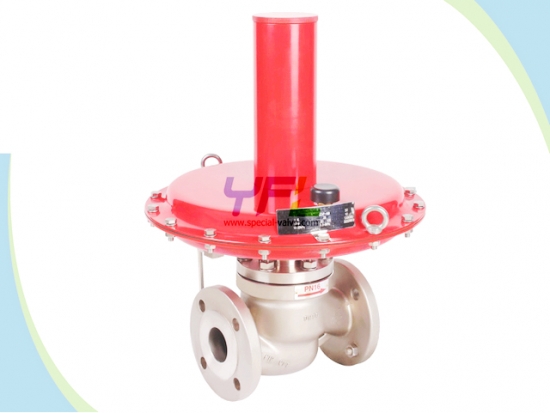

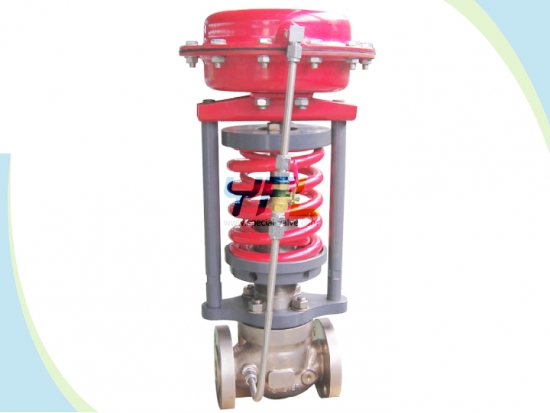

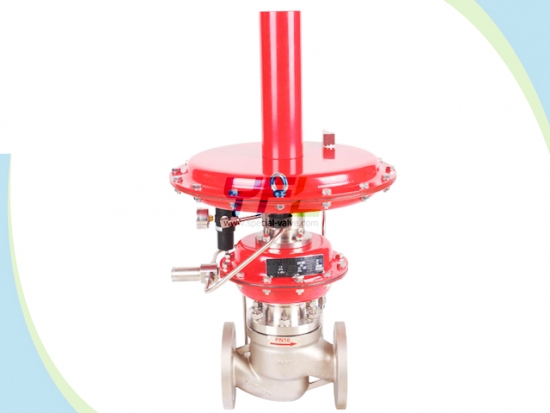

Self operated pressure control valveSelf operated micro pressure control valvesSelf operated micro pressure control valves

Main materials:

  • Body: WCB CF8 CF8M etc.
  • Plug: NBR PTFE etc.
  • Seat: 304 316 316L etc.
  • Stem: 304 316 etc.
  • Diaphragm cover: 20 304 etc.
  • Diaphragm: NBR EPDM FKM

Technical parameters:

  • Size: 1/2"10" (DN15250)
  • Pressure rating: Class 150600 (PN16PN100)
  • Flow characteristic: Quick open
  • Regulating ratio: 30:1
  • Pressure adjusting range: 0.25~4000KPa
  • Control accuracy: 5%
  • Seal leakage: ANSI VI
  • End connection: Flanged
  • Flanged ends: ASME B16.5 EN1092
