Pneumatic Polyurethane Lined Knife gate valve

Pneumatic Polyurethane Lined Knife gate valve

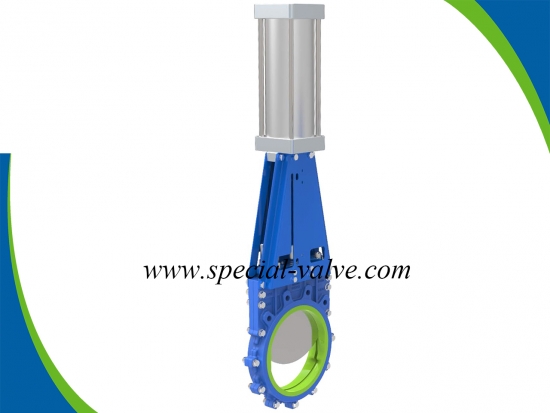

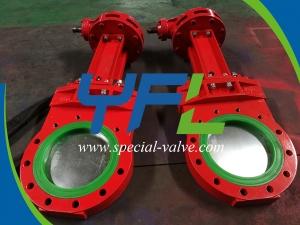

    The YFL Pneumatic Polyurethane Lined Knife gate valve is designed with Polyurethane Lined fully lined in the body specially for abrasive service in many applications like mining slurry, urban sewage treatment, powder, paper, chemicals etc.
Inquiry Now
  • Features
  • Specification

Features:

1. Body fully lined with  abrasion resistant Polyurethane rubber

2. No groove, no residual medium in the body

3. Bi-directional seal

4. Super wearable resistant for mining

5. Suitable for  high pressure up to 16 bar

6. 2pc-body design

7. Full port design

Specifications:

Design Standard: MSS SP-81

Flange Standard: DIN PN10, PN16, 150LB, JIS 10K, TABLE E/D

Face to Face: MSS SP-81

Testing Standard: API-598

Connection ends: Wafer,Lug,Flange

Operation: handwheel, electric, pneumatic, hydraulic, sprocket, electric-hydraulic, gear

Working Pressure:

DN50-DN200         16bar

DN250-DN400       10bar

DN450-DN600        8bar

DN650-DN800        6bar

Materials:

Body material: GGG40

Wedge material: F55,F53,2205,SS310,SS316L,SS316,SS304

Sealing material: Polyurethane rubber

Packing: high-water-based rubber packing graphite wheel
