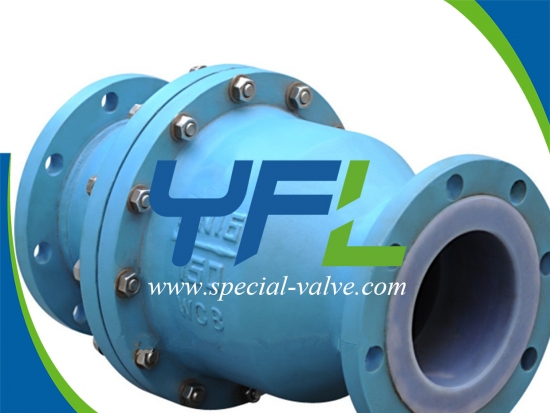

PN16 DN150 FEP Lined Flanged Swing Check Valve

PN16 DN150 FEP Lined Flanged Swing Check Valve

The YFL FEP Lined Flanged Swing Check Valve has body, disc and shaft lined with FEP to be suitable for corrosive service in petrochemical, Oil & Gas, mining & metallurgy, paper & pulp, chemical, wastewater treatment, food & pharmaceutical etc.

Inquiry Now

Features
Specification

Materials Specifications:

Body: WCB/CF8/CF8M/CF3/CF3M+ PFA/FEP/PO Lining

Disc: WCB/CF8/CF8M/CF3/CF3M+ PFA/FEP/PO Lining

Shaft: A105/CF8//CF8M/CF3/CF3M+PFA/FEP/PO Lining

Standards and ranges:

Design & Manufacture: API594

Face to Face: API594

Flange dimensions: ASME B16.5, EN1092-1

Inspection and test: API598, Spark test

Norminal size: 1/2''—20''， DN15-DN500

Normial pressure: PN6—PN16, 150lbs

Suitable temperature:

PFA:-29℃—200℃，PTFE:-29℃—180℃, FEP:-29℃—150℃, GXPO:-29℃—80℃

Suitable service:

Strong corrosive medium like hydrochloric acid, Nitric acid, Hydrofluoric acid, liquid chlorine, sulfuirc and aqua regia etc.
