Working principle:

1.  Solid wastes contained in wastewater enter the YFL non screen drum channel sewage grinder through open channel.

2.  Double shaft blades shred the solid wastes by rotating in opposite direction.

3.   Solid wastes are reduced to 6 mm-12 mm tiny particles without threat to downstream equipments and pass through the grinder.

Main Components:

 Housing:

Sturdy and durable, ASTM A536 ductile cast iron

 Shaft:

ANSI 4140 heat treated ally steel with surface harden;

Connected with cutters through six-slot spline.

Double shaft blades:

Low rotating speed, high torque, powerful, low noise.

 Cutters and spacers:

ANSI 4130 alloy steel with hardened surface, 45-55 HRC hardness;

Overlaid with Titanium is available;

Customize cutters with various construction and teeth number to meet different applications.

Mechanical seal assembly:

Tungsten carbide surface with Buna-N seal;

Pressure value up to 6.3 kg/cm².

Motor:

Dry & wet motor with IP 55 is available;

Submersible and anti-explosive IP 68 for use under water is available.

Planetary gear reducer:

Strong anti-shock ability.

Side rails:

Increases flow capacity and decreases head loss;

Guides solid wastes into the cutting area.

Installation slot:

Easy and flexible installation cooperated with stainless steel installation frame, little or no civil work needed.

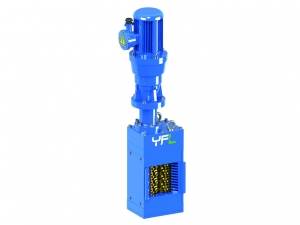

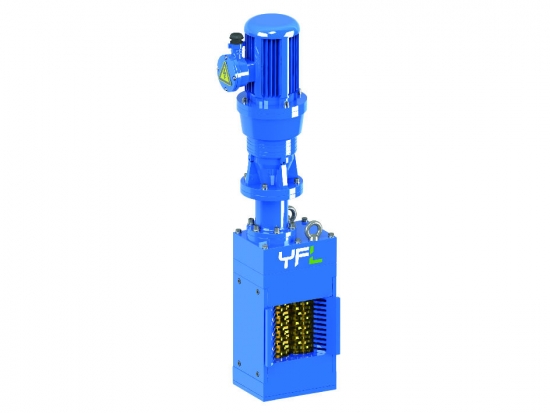

The YFL Non screen drum channel sewage grinder is designed for small channel with flow rate from 80 m³ /hour to 1000 m³/hour.
