Long Stem Dumping Valve For Alumina

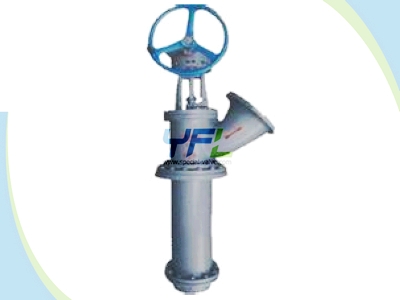

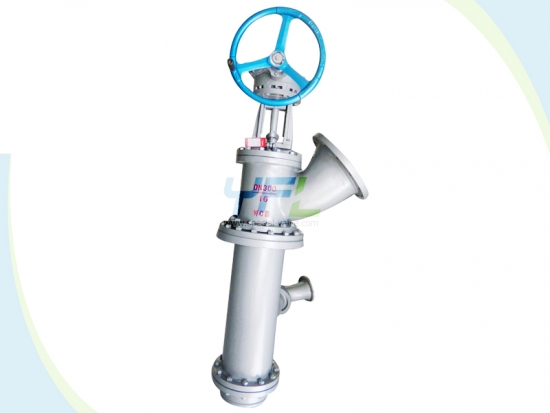

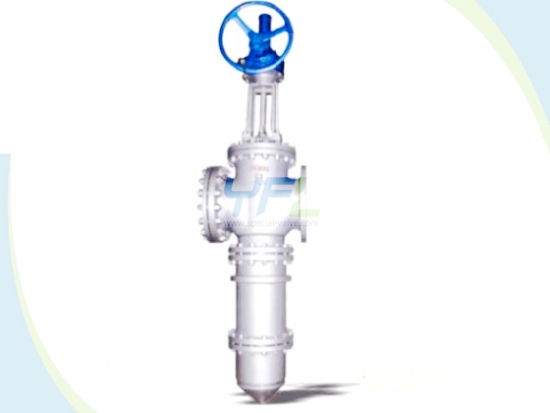

Long Stem Dumping Valve for Alumina

The YFL long stem dumping valve is specially designed according to the slot dumping in aluminum oxide industry to solve the problems caused by normal dumping valves.

Inquiry Now

Features
Specification

Long stem design for seat installation to prevent depositing and scaling;
Long stem design makes the sealing set can be in the area of aluminum oxide slurry which have not been scaling so that the sealing set can open and discharge regularly;
Convenient for repair and maintenance

Product range:

Body material：Carbon steel
Normal size：DN150~ DN 300
Pressure rating：PN10~PN 25 150Class
Suitable temperature：≤425℃
Operation type：Handwheel bevel gear operated
Suitable service：Aluminum oxide water and ash mixture coal slurry

Technical standards:

Design standard：GB/T 12235 ASME B16.34
Face to Face：GB/T 12221
Flange dimensions：GB/T 9113 HG/T 20592 HG/T 20615 ASME B16.5
Pressure test：JB/T 9092 API 598
Product Mark：GB/T 12220 MSS SP-25
