API & DIN Soft Seal Sleeved Plug Valve

    The YFL ANSI & DIN sleeved soft seal plug valve according To API & DIN standard is applicable for viscous medium in various industries such as petroleum, chemical, pharmaceutical, fertilizer and electrical power under nominal pressure of class 150lbs/PN16 to 900lbs/PN160 and working temperature of -29180.

Inquiry Now
  • Features
  • Specification

  • The sealing of the YFL sleeved plug valve is realized by the sealing face around the sleeve;
  • The unique 360 degree metal edge for protection and fixing of sleeve;
  • The 360 degree metal edge provides the self-cleaning function when the plug is rotated;
  • The YFL sleeved soft seal plug valve is suitable for the medium which is viscous and easy to fouling;
  • There is no cavity in the valve for accumulation of medium.

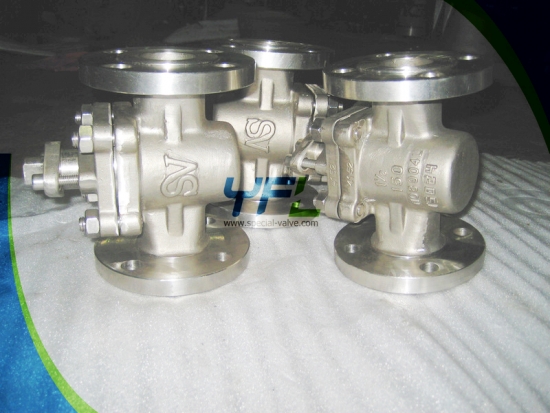

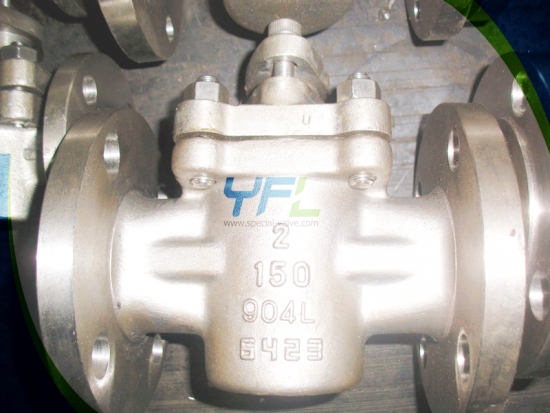

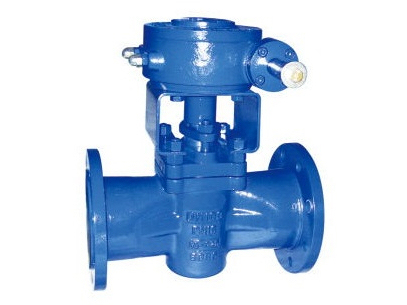

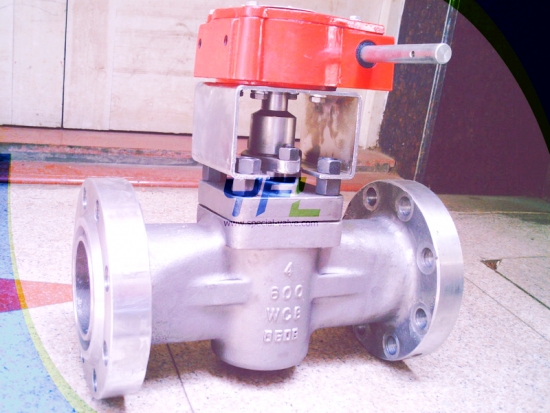

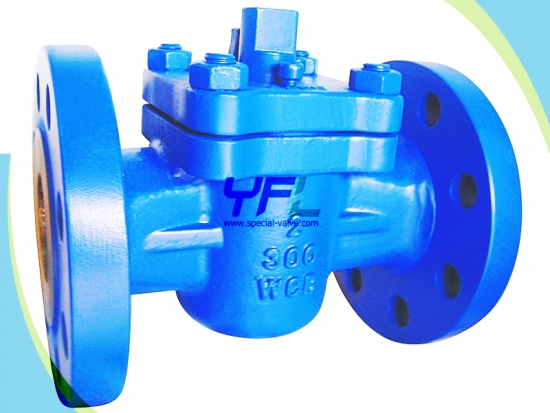

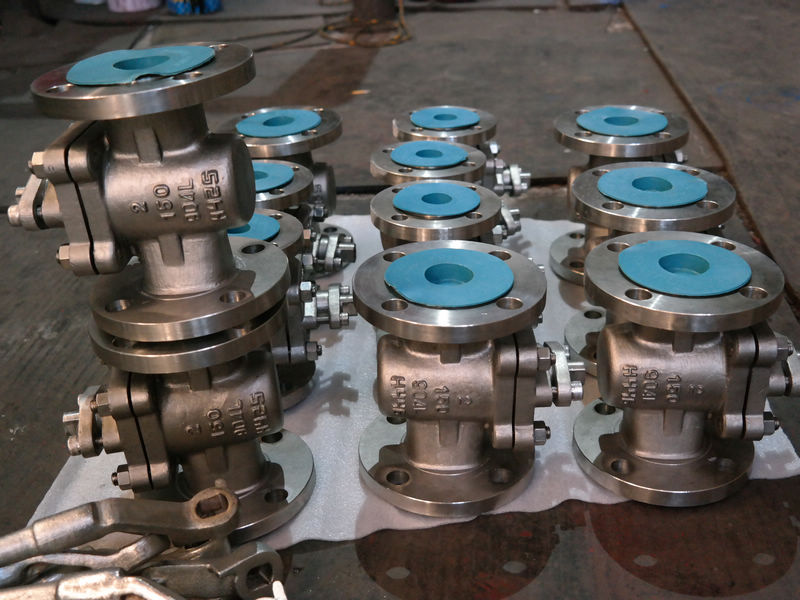

DIN sleeve type soft seal plug valve904L Duplex sleeve type soft seal plug valvesSleeve type soft seal plug valve gear operated

Product range:

  • Size: 2"14" DN50DN350
  • Pressure rating: Class 150900 PN16PN160
  • End connection: RF RTJ BW
  • Body materials: WCB WC1 WC6 WC9 C5 CF8 CF8M CF3 CF3M UNS N08904 etc.
  • Plug materials: A217 CA15 A182 F6a A351 CF8 CF8M CF3 CF3M etc.
  • Operation: Bare stem Wrench gear electric pneumatic

Technical standards:

  • Design: API 599 API 6D
  • Face to Face: ASME B16.10 DIN3202 F1
  • BW ends: ASME B16.25 ASME B31.8
  • Flanged ends: ASME B16.5 DIN2543-2549
  • Test and inspection: API 598 DIN3230
  • Pressure and temperature rating: ASME B16.34
