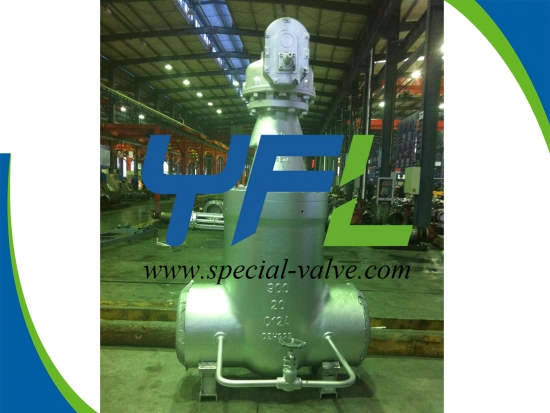

900#BW 20'' C12A Gate Valve With Bypass Valve

900#BW 20'' C12A Gate Valve With Bypass Valve

The YFL 900#BW 20'' C12A Gate Valve With Bypass Valve is produced in materials of C12A with pressure seal bonnet and bypass valve suitable for high pressure and high temperature applications in power plants.

Inquiry Now

Features
Specification

Features:

1. Pressure seal bonnet for high pressure

2. High temperature resistant steel C12A for high temperature

3. With bypass valve

Standards:

Design: API 600, DIN3352, BS1414, BS EN1984

Face to Face: ASME B16.10, DIN3202

Flanged ends: ASME B16.5, ASME B16.47, EN 1092-1

BW ends: ASME B16.25, ASME B31.8, EN12627

Ranges:

Size: DN 50～DN1200, 2''～48''

Pressure rating: PN160～PN420, 900lbs～2500lbs

End connection: Flanged RF BW

Body materials: WC6, WC9, C5, C12, C12A etc.

Operation: handwheel, gear operated, electric operated
