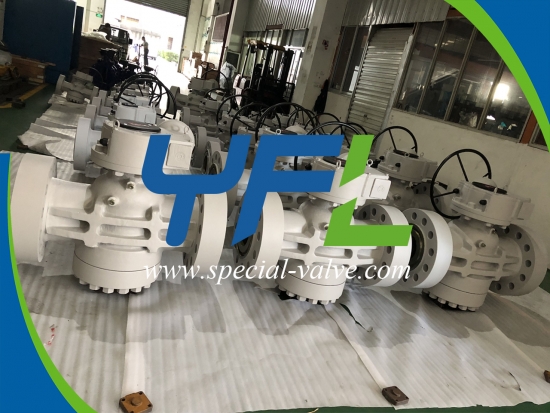

2500lbs High Pressure Oil Seal Plug Valve

2500lbs High Pressure Oil Seal Plug Valve
    The YFL 2500lbs High Pressure Oil Seal Plug Valve is designed to achieve excellent seal performance and reduce the operation torque by oil sea in applications of petroleum, chemical, pharmaceutical, fertilizer and electric etc.
Inquiry Now
  • Features
  • Specification

Featured:


1. Plug is inverted installation to reduce the operation torque.

2. Lubricated Oil is injected into the oil groove and a oil film will be between the body and the plug sealing face to achieve excellent seal performance and reduce the abrasion.

3. Suitable for applications with high temperatures.

4. Plug is overlaid with stellite or done with surface harden treatment to increase abrasion and corrosion resistance and prolong the service life.


Standards:

Design and manufacture: API 599, API 6D, DIN3356

Face to Face: ASME B16.10,  DIN 3202-F1

Flange: ASME B16.5, EN1092-1

Test: API 598, API 6D, DIN3230

Ranges:

Sizes: 1/2''-24''

Pressure: 150lbs-2500lbs

Operation: Handwheel, gear operated, electric operated
